Pressix CC 27 - Channel System
MH 27
MV 27
Channel Holder MOF 27
Group: 2753
Application
To be used for installing crossbars between two channels 27 or as base unit for cantilever arms.

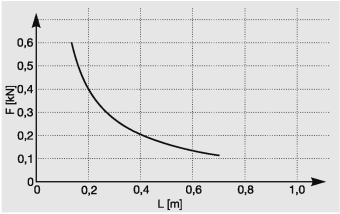

Note: When assembling version MH as cantilever, respect sufficient bracing of the channel. In case of tension load Fz at channel slot, screws must be displaced.
Configuration
Completely assembled.
Assembly
Position the channel into the U-profile. Click in the speed nut by pushing on the bolt head and tighten with 10 Nm.
Technical Data
| Adm. anchor loads to be respected Max. adm. load for assembly on ceilings in vertical direction: 0,8 kN |  |
| Material: | steel, electro-galvanised |
| Type | Wall plate [mm] |
D [mm] |
L1 [mm] | W [kg] |
Quantity [pack] |
Part- No. |
|---|---|---|---|---|---|---|
| MH 27 | 88 x 30 x 5 | 9 | 70 | 0.20 | 25 | 198858 |
| MV 27 | 88 x 30 x 5 | 9 | 70 | 0.20 | 25 | 198865 |
