Pressix CC 41 - Channel System
Slot pattern II

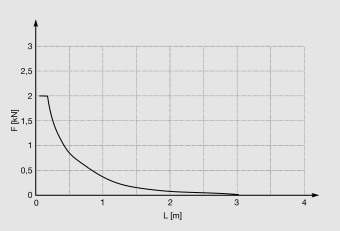

41/21/1.5

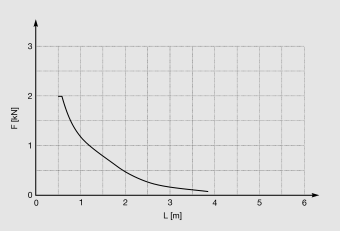

41/21/1.5 D
Channel MS 41/21/1.5
41/21/1.5
41/21/1.5 D
|
The influence of the channel slots and the channel's dead weight are taken into account in the values. σperm ≤ 160 N/mm2 f ≤ L/200 |  |
