Application

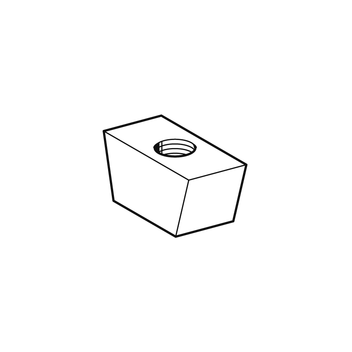

Developed for profiled metal-decked slabs. May be used for fixing threaded rod or bolted connections to soffit of slab, e.g. rod suspensions, end plates and back plates.

Technical Data

Load capacities

Size
Working Load
M8
2.0 kN
M10
2.0 kN
M12
2.0 kN

Material:
cold-worked steel, plated finish.
TypeW
[kg]
Quantity
[pack]
Part
number
M80.035100 238042
M100.035100 238043
M120.035100 238044
