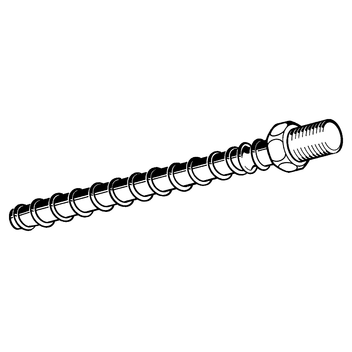

Screwbolt MMS-ST

Application

Suitable for quick and safe fixation of e.g. channels and pipes to concrete ceilings or walls and brickwork constructions (of calcareous sandstone, solid bricks, clinker bricks, natural stone). To be applied in closed rooms - not suitable for damp locations.

  • Easy drilling (6 or 8 mm only), no special drill rquired.
  • Small distances due to low expansion pressure.
  • "The Bolt Screw that does not need an anchor".

Installation

Screw in the bolt screw in pre-drilled cylindrical hole. The special thread guarantees formlock screw in. Readjustment of depth is possible.

Technical Data

Type
7.5x70
7.5x80
-
7.5x160
10x80
10x100
-
10x120
Drive SW 10 SW 10 SW 13 SW 13
Thread connection M8x14 M8x14 M10x11 M10x11
Nominal diameter of drill d0 [mm] 6 6 8 8
Drilling depth h1 [mm] 55 65 65 75
Setting depth hnom [mm] 45 55 55 65
max. adm. tensile load in cracked concrete C20/25 [kN] 0.5 1)  2.0 2)  0.8 1)  3.7 2)
max. adm. tensile load in non-cracked concrete C20/25 [kN] 2.0 1)  3.1 2)  - 4.9 2)
perm. bending moment Mperm [Nm] 9.4 9.4 18.7 18.7
recommended max. torque Tinst [Nm] 20 20 40 40

recommended max. tension load in chalk sandstone 3) [kN] 1.4 1.4 2.1 2.1
recommended max. tension load in brick 3) [kN] 1.4 1.4 2.1 2.1
recommended max. tension load in solid brickwork 3) [kN] 0.8 0.8 1.0 1.0

tested load in concrete under stress4)
F 30 0.5 1)  1.5 0.8 1)  2.7
F 60 0.5 1)  1.1 0.8 1)  2.0
F 90 0.5 1)  0.8 0.8 1)  1.5
F 120 0.5 1)  0.5 0.8 1)  1.0

tested load in brickwork under stress 4)
F 30 1.25 1.25 2.5 2.5
F 60 0.8 0.8 1.4 1.4
F 90 0.5 0.5 1.0 1.0
F 120 0.3 0.3 0.8 0.8

Material:
Steel, electro-galvanised

Approvals / Compliance

1)
according to DlBt-Approval No. Z-21.1-1503
2)
according to ETA 05/0010
3)
single anchor without influence of strength class KS12/MS12
4)
load for single anchor traction-, lateral traction and res. directions of load. Respect values of cold strain.

For calculation the whole approval is to be respected.

TypeTotal length
[mm]
Panel
thickness
[mm]
W
[kg]
Quantity
[pack]
Part
number
7.5 x 70 70250.02100 157816
7.5 x 80 80250.0250 157825
7.5 x 100100450.0350 157834
7.5 x 120120650.0350 157843
7.5 x 140140850.03 50 157852
7.5 x 1601601050.04 50 157861

10 x 80 80250.0350 157889
10 x 100 100350.04100 157898
10 x 120120550.05 50 157904
