End Support WBD F 100

Application

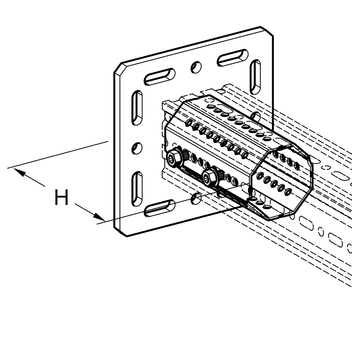

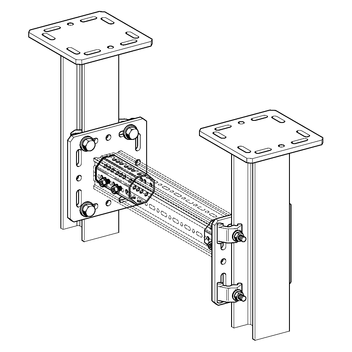

Plug-in component designed to create a square endplate at the open end of a Beam Section TP F 100 or a Beam Bracket/Cantilever bracket AK F 100. Variation “T” with octagonal insert allows full utilisation of beam section within the space required by the End Support WBD itself.

Installation

Depending on the situation, different options are recommended:

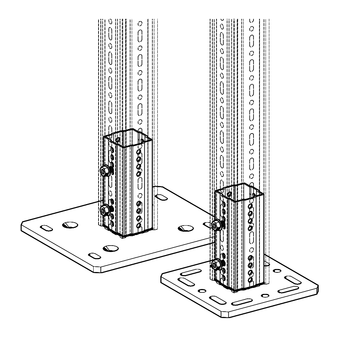

a) Directly to building structure: 4 x suitable wall anchors and 4 Self Forming Screws FLS applied to the square/octagonal insert

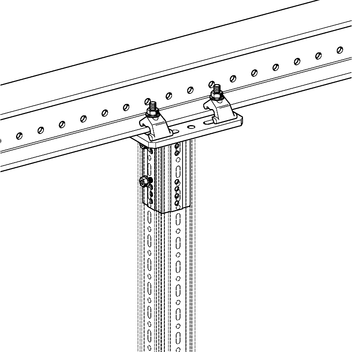

b) To traditional steel beams between 80 – 300 mm flange dimensions: 1x Assembly Set 5P M12 S, M16 S and 4 Self Forming Screws FLS applied to the square/octagonal insert
c) To traditional steel beams > 120 flange dimension: with on-demand Adaptor Plate (tbc)
d) To Sikla Simotec steel beams 100/120: with Bracket Plates FV 100/120 when positive mechanical connection required

The Beam Section TP F 100 connected to the End Support WBD F 100 has to be screwed with 4 Self Forming Screws FLS F. On each of the opposite sides 2 Self Forming Screws FLS F are necessary.

Technical Data

Type
for flange width
[mm]
Dimensions of base plate
[mm]
Slots in base plate for
H
[mm]
WBD F 100-80/120 80 - 120 220 x 220 x 12 M12 232
WBD F 100-121/160 121 - 160 320 x 260 x 12 M12 232
WBD F 100-161/200 161 - 200 320 x 310 x 12 M16 232
WBD F 100-201/300 201 - 300 420 x 220 x 12 M16 232
WBD F 100-T 80 - 120 220 x 220 x 12 M12 192

Configuration:
Base plate welded to square resp. octagonal element (nur WBD F 100-T)
Material:
Base plate:
Steel, HCP
Square F 100:
Steel, HCP
Octagonal element F 100:
Steel, HCP

Approvals / Compliance

CE mark (Declaration of performance see www.sikla.co.uk/service/downloads)

End Support WBD F DoP A421-A821 PDF | 37.1 KB

TypeW
[kg]
Quantity
[pack]
Part
number
WBD F 100-80/1206.11 113075
WBD F 100-121/1609.71 113076
WBD F 100-161/20011.21 113077
WBD F 100-201/30010.31 113078
WBD F 100-T5.31 113079
