Assembly System siMetrix 46
Bi-directional Slide Set KGL 46
Application

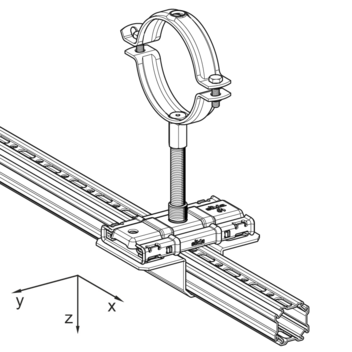

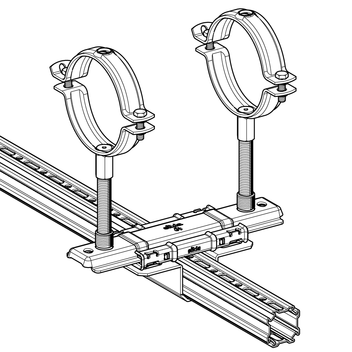

Bi-directional Slide Set for single and double guided brackets on siMetrix Profile PRO 46. Connection options vary on the load, using either the 3G thread: M10, M16 and 1/2".
Installation
For supported installations from DN 100 upwards, a locking nut must be mounted on the 3G triple thread nut for both Slide Sets.
Technical Data
| Type | Vz,zul [kN] | - Vz,zul [kN] |
|---|---|---|

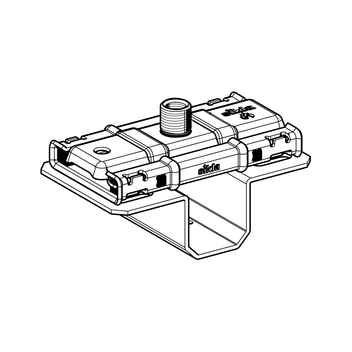

| KGL H3G-PL 46 | 11,04 | 3,45 |

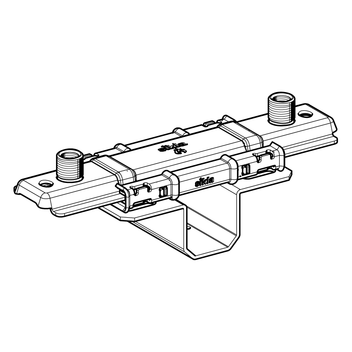

| KGL H3G2-PL 46 | 11,04 | 3,45 |
| Permanent temperature range Slide Set: | 130°C |
| Static friction coefficient µ0: | 0,07 |
| Sliding friction coefficient µ: | 0,07 |
| Tightening torque siMetrix screws: | 15 Nm |
| Material: | |
| Slide element and retaining plate: | Steel, HCP |
| Slide bar: | Polyamide (glass-fibre reinforced), MoS2 coated |
| Type | max. lever arm [mm] | max. glide path s [mm] |
|---|---|---|
| KGL H3G-PL 46 | 250 | 100 |
| KGL H3G2-PL 46 | 250 | 140 |
