MODULAR
STEELWORK SOLUTIONS
Fixings & Fastenings

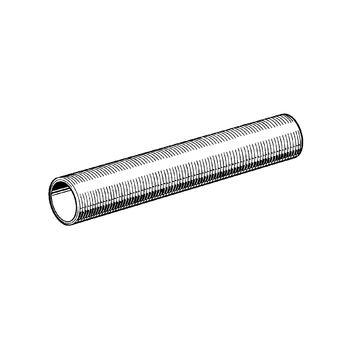

Threaded Tube GR

Application

To be used as

  • a direct connection element between Mounting Plate and Pipe Clamp or
  • a support rod in combination with Socket Angle or Universal Joints as angular support.

Scope of delivery

Standard length 2m. Shorter pre-cut parts available on request.

Technical Data

Screw thread as per DIN EN ISO 228

Material:
Steel, electro-galvanised
TypeLengthWeight
[kg/m]
Qty.
[m]
Part
number
G 1/2"2 m0.922 151102
G 3/4"2 m1.012 151111
G 1"2 m2.712 151120
