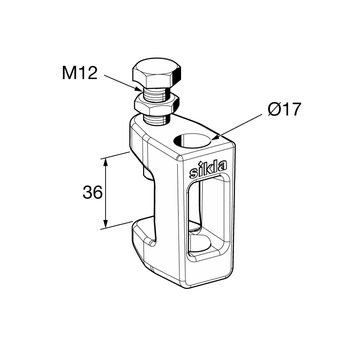

Beam Clamp TCS HCP
Heavy-duty connection elements which, in combination with Grub Screws (M10), are suitable for mounting pipes, ducts and equipment to steel beams (I-, T-, U- and angle steel beams).
- The combination with a Universal Joint ss provides for vertically aligned attachment to inclined beams.
- Can serve as single mounting elements, for installing crossbars and for fixing cantilever structures.
- Due to their special base profile, Beam Clamps TCS 1 can also be slid along and retained in the opening of Sikla Channels MS 41.
Scope of delivery
Pre-assembled with clamping bolt and locking nut.
Tigthen the clamping bolt of the Beam Clamp first by hand, then tighten down with a spanner according to the mounting instructions. The hardened point of the clamping bolt will penetrate the comparatively soft material of the beam, ensuring a solid and highly secure connection. Tigthen the locking nut for securing the installation.
For use in the area of a cutting edge of a channel, an additional Holding Bracket HK 41 must be mounted.
Note: Read relevant mounting instructions before installation!
This nominal load applies to new Beam Clamps fixed to undamaged beam flanges only.
| TCS 1:|| 5.0 kN|
| TCS 2:|| 8.5 kN|
| Material:||Cast iron, HCP|
Approvals / Compliance
Approved and accepted by VdS and FM for use with stationary fire extinguishing systems.
For different application fields: G4820023, G4800039, G4800040, G4800042, G4800043, G4800044, G4800045
Beam Clamp TCS1 M10/M10 - G4820023 VdS PDF | 349.3 KB Beam Clamp TCS1 - G4800039 VdS PDF | 155.5 KB Beam Clamp TCS with Safety Strap - G4800040 VdS PDF | 153.4 KB Beam Clamp TCS2 with Safety Strap - G4800042 VdS PDF | 153.9 KB Beam Clamp TCS - G4800043 VdS PDF | 161.1 KB Beam Clamp TCS - Double Support - G4800044 VdS PDF | 163.1 KB Beam Clamp TCS - Projecting Crossbar - G4800045 VdS PDF | 159.9 KB FM - Beam Clamps TCS PDF | 134.0 KB
