MODULAR
STEELWORK SOLUTIONS
HDG & HCP Standard Range

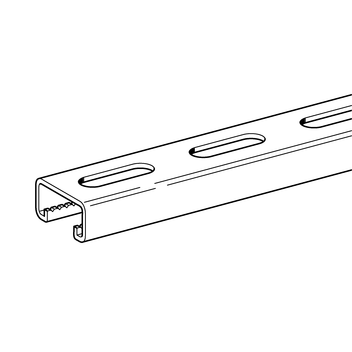

Channel MS 41 HCP

Application

Element for easily and efficiently pre-assembling crossbars, wall brackets and supporting structures on construction sites or in workshops.

Scope of delivery

Available as single or double channels.
Double channels are joined together by clinching.

Installation

All Channels MS 41 hcp are serrated inside and provide numerous combination options with other high corrosion protected system components.

Technical Data

Material:
Steel, HCP

D = Double channel

Type
W/H/th [mm]
Section modulus
[cm3 ]
Moment of inertia
[cm4 ]
Radius of gyration
[cm]
41/21/2.0
Wy : 0.82
Wz : 2.12
ly : 0.92
lz : 4.35
iy : 0.76
iz : 1.65
41/31/2.0
Wy : 1.60
Wz : 2.88
ly : 2.77
lz : 5.90
iy : 1.13
iz : 1.65
41/41/2.0
Wy : 2.43
Wz : 3.65
ly : 5.16
lz : 7.48
iy : 1.46
iz : 1.75

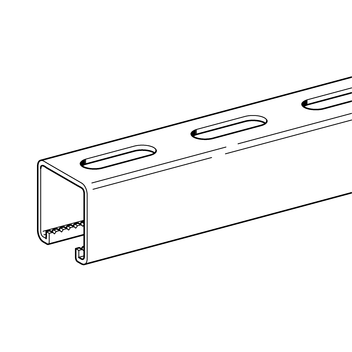

41/41/2.5
Wy : 2.96
Wz : 4.41
ly : 6.19
lz : 9.05
iy : 1.43
iz : 1.72
41/62/2.5
Wy : 5.54
Wz : 6.27
ly : 17.70
lz : 12.86
iy : 2.10
iz : 1.79

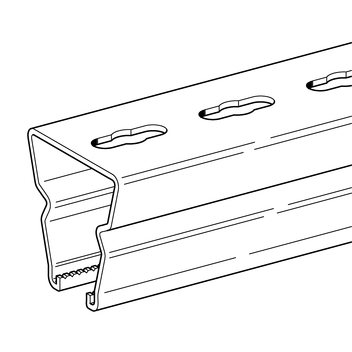

41-75/75/3.0
Wy : 10.31
Wz : 11.59
ly : 44.42
lz : 43.48
iy : 2.53
iz : 2.50

41/21/2.0 D
Wy : 2.35
Wz : 4.24
ly : 4.93
lz : 8.70
iy : 1.24
iz : 1.65
41/41/2.5 D
Wy : 9.02
Wz : 8.82
ly : 36.99
lz : 18.10
iy : 2.46
iz : 1.72
41-75/75/3.0 D
Wy : 30.72
Wz : 23.07
ly : 230.40
lz : 86.96
iy : 4.07
iz : 2.50

Type
W/H/th [mm]
Cross section
A
[cm2 ]
Distance
e
[cm]
Max. point
carrying capacity
Fmax [kN]
Max. torsional
moment
Mq [Nm]
41/21/2.0 1.61 1.12 4.0 44.5
41/31/2.0 2.17 1.73 4.0 44.5
41/41/2.0 2.43 2.12 4.0 44.5
41/41/2.5 3.05 2.09 6.0 44.5
41/62/2.5 4.01 3.20 6.0 44.5
41-75/75/3.0 6.95 4.31 10.0 44.5

41/21/2.0 D 3.21 2.10 4.0 44.5
41/41/2.5 D 6.09 4.10 6.0 44.5
41-75/75/3.0 D 13.90 7.50 10.0 44.5

Notice:
All values take into account the perforation of the channels.
For load charts, see chapter "Pressix CC 41".

Approvals / Compliance



This product is has obtained the "RAL Gütezeichen Rohrbefestigung" and is subject to external surveillance according to RAL GZ-655.

* = no RAL quality label

TypeLength
[m]
Slot patternWeight
[kg/m]
Qty.
[m]
Part
number
41/21/2.0631.326 193860
41/31/2.0631.646 198896
41/41/2.0631.976 196724
41/41/2.5632.366 161497
41/62/2.5633.136 199527
41-75/75/3.0645.686 174008

41/21/2.0 D *632.646 193884
41/41/2.5 D *634.746 166748
41-75/75/3.0 D *6411.246 173981
