Pipe Guides & Slide Elements

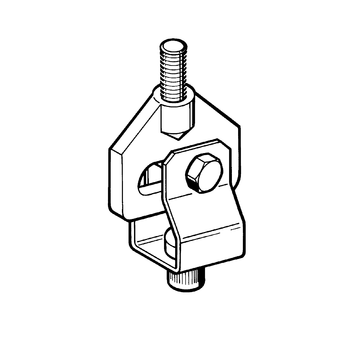

Slide Element GLE J

Application

Height-adjustable suspension slide element for all mechanical services.
Can be fixed as a single mounting element directly to the ceiling or, in case of parallel pipe runs, to Sikla Channels.

The slide roller located in the suspended section provides for smooth, jerk-free and silent sliding.

Scope of delivery

Completely pre-assembled.

Installation

The selected height is to be secured by means of a locking nut.

Technical Data

Type
FZ *
[kN]
J 8 3.5 kN
J 10 3.5 kN
J 12 6.0 kN
J 16 6.0 kN

Adm. load FZ * under stress of fire

Type
FWD 30
[N]
FWD 60
[N]
FWD 90
[N]
FWD 120
[N]
J10 ≤ 1.100 ≤ 600 ≤ 400 ≤ 300
J12 ≤ 1.300 ≤ 1.000 ≤ 500 ≤ 300
J16 ≤ 1.300 ≤ 1.000 ≤ 500 ≤ 300

FZ = max. adm. tensile load

* The load capacity of the connecting elements used is to be respected, this applies in particular under stress of fire.

Maximum lateral deviation angle:
10°
Length of drop rod of threaded rod:
No limitation
Maximum sliding distance:
25 mm
Maximum height adjustment:
15 mm
Static friction coefficient µ0 :
0,23
Sliding friction coefficient µ:
0,15

Material:
Steel/ cast iron, electro-galvanised
TypeThread
connection
Anchor
size

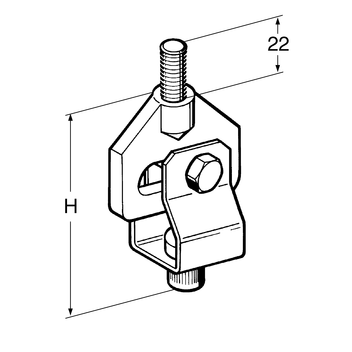

Height H
[mm]
W
[kg]
Quantity
[pack]
Part
number
J 8M8M8850.1925 126852
J 10M10M10850.1925 126861
J 12M12M12950.2925 126870
J 16M16M12950.2725 126889
