Application

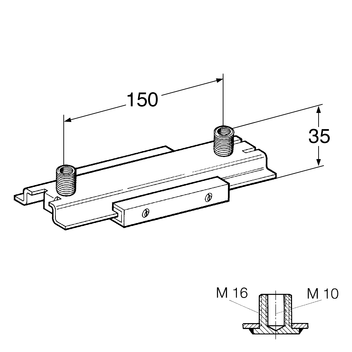

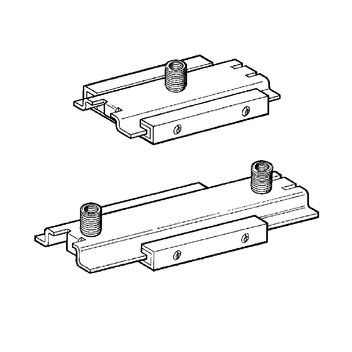

Slide Set for single and double mounting of mechanical equipment. To be used preferably in combination with Sikla Pipe Clamps Ratio S and Stabil D-3G.
Various connection options with these pipe clamps ranging between M10 and R1". For adapters for these connection options (see Adapter AD f/f).
Sound absorption by means of glass fibre reinforced PA slide rails.
When using the version ULTRAglide the resultant shear force is halved. By this the realisation of optimized supporting structures is possible.

Technical Data

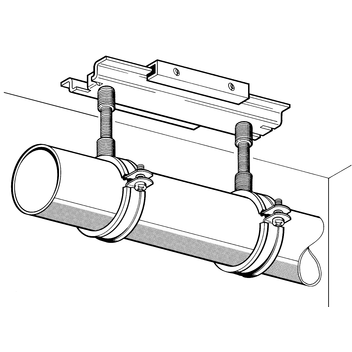

Permissible load for ceiling mounting:
0.6 kN
Permissible load for floor mounting:
1.2 kN
Temperature range (permanent exposure):
130°C

Version GS:
Static friction coefficient µ0 :
0.18
Sliding friction coefficient µ:
0.14

Version GS ULTRAglide:
Static friction coefficient µ0 :
0.07
Sliding friction coefficient µ:
0.07

Material:
Metal components:
Steel, electro-galvanised

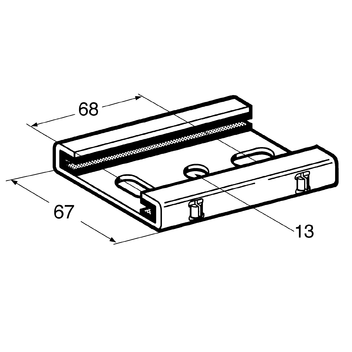

Slide bar:
Polyamide, glass fibre reinforced
Version ULTRAglide:
With additional Nano coating

Type
max. lever arm
[mm]
max. glide path s
[mm]
2G 300 85
2G2 300 140

Adm. load FZ * under stress of fire

FWD 30
[N]
FWD 60
[N]
FWD 90
[N]
FWD 120
[N]
≤ 600 ≤ 430 ≤ 280 ≤ 200

FZ = max. adm. tensile load

* The load capacity of connecting elements used is to be respected, this applies in particular under stress of fire.

TypeW
[kg]
Quantity
[pack]
Part
number
2G0.3825 126755
2G20.4925 126764
2G ULTRAglide0.3825 110582
2G2 ULTRAglide0.4925 110584
