Pressix CC 41 - Channel System

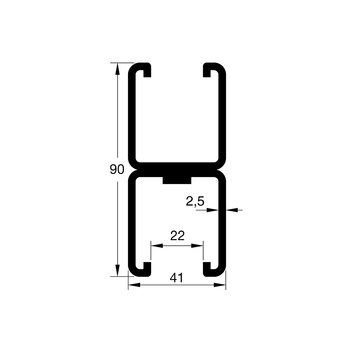

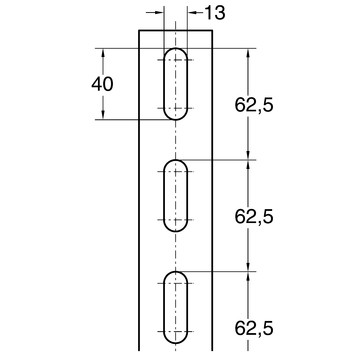

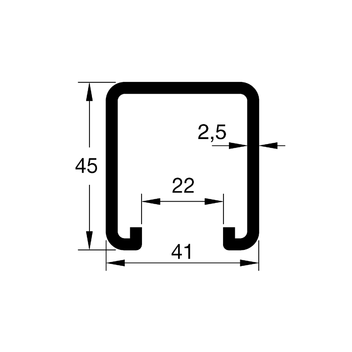

Channel MS 41/45/2.5
Permissible load with centrical load application
| L [cm] | 41/45/2,5 [N] | 41/45/2,5 D [N] |
|---|---|---|
| 20 | 12656 | 38808 |
| 40 | 6324 | 19397 |
| 60 | 4212 | 12923 |
| 80 | 3155 | 9684 |
| 100 | 2519 | 7738 |
| 120 | 2095 | 6440 |
| 140 | 1791 | 5511 |
| 160 | 1523 | 4813 |
| 180 | 1195 | 4269 |
| 200 | 960 | 3833 |
| 220 | 785 | 3475 |
| 240 | 651 | 3176 |
| 260 | 546 | 2923 |
| 280 | 463 | 2705 |
| 300 | 394 | 2515 |
| 320 | 338 | 2226 |
| 340 | 291 | 1955 |
| 360 | 251 | 1726 |
| 380 | 216 | 1532 |
| 400 | 187 | 1365 |
| 420 | 160 | 1221 |
| 440 | 137 | 1095 |
| 460 | 117 | 985 |
| 480 | 99 | 887 |
| 500 | 82 | 800 |
| 520 | 67 | 722 |
| 540 | 53 | 652 |
| 560 | 41 | 589 |
| 580 | 29 | 532 |
| 600 | 18 | 479 |
The influence of the channel slots and the channels
dead weight are taken into account in the values.
Calculations according RAL-GZ 655-C.
σperm ≤ 185 N/mm2
f ≤ L/200
