Clamping Unit KL
Used for assembling double channels made from Sikla Channels with slot pattern III or IV, i.e. with a minimum material thickness of 2.5 mm.
This system could be used for pre-assembly in a workshop also.
A torque wrench is required in order to ensure that the static values indicated on page 3-7 are achieved.
Attention: These values are only guaranteed when using Sikla Channels.
Scope of delivery

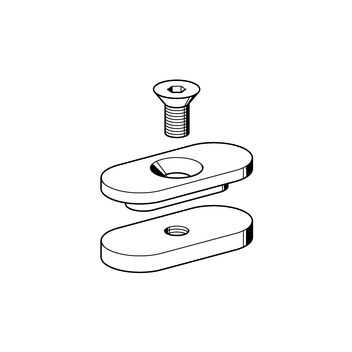

Consists of forming plate, pressure plate and a hexagon socket bolt M8 (DIN 7991)
Max. spacing between connecting points is 500 mm, with one point at each end of the channel section. Required number of Clamping Units: channel 2m = 5 pcs., channel 6m = 13 pcs.
For Channel 41/21/2,0 no connecting elements, like channels nuts, etc. could be placed directly above the connectors.
Torque: M = 25 Nm
| Material:|| Malleable cast iron, electro-galvanised|
