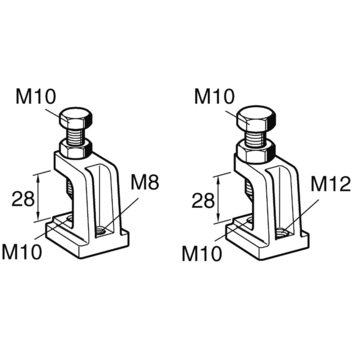

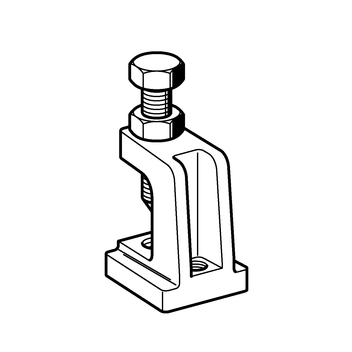

Beam Clamp TCS ss
Heavy-duty connection element, which in combination with grub screws (M8 or M10), are suitable for mounting pipes, ducts and equipment to steel beams (I-, T-, U and angle steel beams).
- The combination with a Universal Joint ss provides for vertically aligned attachment to inclined beams.
- Can serve as single mounting element, for installing crossbars and for fixing cantilever structures.
- Due to their special base profile, Beam Clamps TCS can also be slid along and retained in the opening of Sikla Channels MS 41.
Scope of delivery
Pre-assembled with clamping bolt and locking nut.
Tighten the clamping bolt of the Beam Clamp first by hand, then tighten down with a spanner according to the mounting instructions. The hardened point of the clamping bolt will penetrate the comparatively soft material of the beam, ensuring a solid and highly secure connection. Tighten the locking nut for securing the installation.
Use an additional Holding Bracket HK 41 for mounting in the aera of the cutting edge of a channel.
Advice: Read relevant mounting instructions before installation!
| Working load:||5.0 kN|
This nominal load applies to new Beam Clamps fixed to undamaged beam flanges only.
| Material:||Stainless steel A4|
