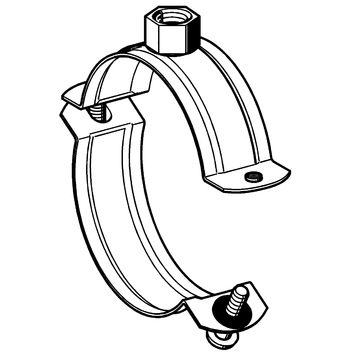

Two-piece clamp with thread connection M8 or M10 for the installation of pipelines.

Scope of delivery

Supplied with two bolts particularly pre-screwed on one side and therefore ready for immediate installation. The clamping bolt on the open side is retained by a plastic washer, thus preventing any accidential unscrewing.

Technical Data

Type
Thread
connection
Max. perm.
working load (tension)
Tightening torque
[Nm]
13 - 73 M8 0.6 kN 2
75 - 169 M10 2.5 kN 2

The recommended load is calculated using specific statistical methods relating to break load and is designed to restrict deflection to 1.5 mm or 2 % of the maximum applicable clamping diameter.

Material:
Stainless steel A4
Size range
[mm]
For pipe
[NB]
Material
W x th
[mm]
W
[kg]
Quantity
[pack]
Part
number
13 - 181/4" + 3/8"20 x 1.50.04100 170587
19 - 221/2"20 x 1.50.05100 170602
27 - 303/4"20 x 1.50.05100 170611
32 - 361"20 x 1.50.05100 170620
40 - 441 1/4"20 x 1.50.0650 170639
48 - 541 1/2"20 x 1.50.0750 170648
60 - 662"20 x 1.50.0850 170657
68 - 73-20 x 1.50.0925 173342
75 - 802 1/2"25 x 2.00.1525 170666
84 - 893"25 x 2.00.1625 170675
102 - 108-25 x 2.00.1925 173351
110 - 1154"25 x 2.00.2025 170684
129 - 1405"25 x 2.50.2625 110882
159 - 1696"25 x 2.50.3125 110883
