Beam Section Holder TPH F 100
Interface element to connect 90° intersecting Beam Sections F100. Alternatively the Beam Section Holder TPH may be used to connect only one beam section to an even surface with suitable wall anchors or with cast-in channel accessories.

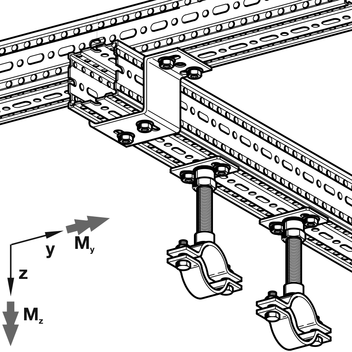

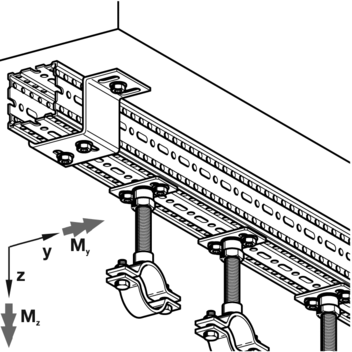

Connecting one Beam Section F100 90° to another one by using 6 x Self Forming Screw FLS applied through all elongated holes. Connecting to any other surface or member by using 2 x Self Forming Screws FLS through the two elongated holes on the top of the Beam Section Holder TPH F100 plus 2 appropriate fixing elements up to M12 through the two holes “d1”.

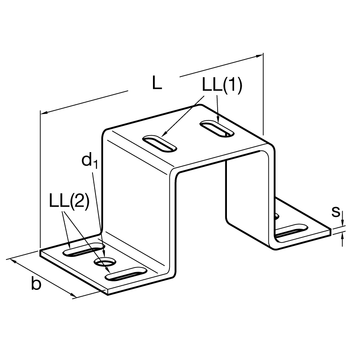

| Type|| L x b x s|
| ø d1|
| Elongated hole LL1|
d x a [mm]
| Elongated hole LL2|
d x a [mm]
|TPH F 100 C||219 x 100 x 4||14||11 x 20|| 11 x 20|
|TPH F 100/80 C||199 x 100 x 4||14||11 x 20||11 x 20|
| Type|| Fx [kN]|| Fy [kN]|| Fz [kN]|| My [kNm]|| Mz [kNm]|
|TPH F 100 C||6.2||12.7||12.3||0.6|| 0.5|
|TPH F 100/80 C||6.2||12,7||12.3||0.6||0.5|
The above load data indicates permissible loads and includes Partial Safety Factors γM2 = 1.25 (EN 1993-1-8:2010-12,
Tab. 2.1) and γG = 1,35 (EN 1990:2010-12, Tab. A1.2(B)) for general permanent actions.
| Material:||Steel, HCP|
Approvals / Conformity
