Fastening to Concrete and Steel

End Support WBD F 100

Application

Plug-in component designed to create a square end plate at the open end of a Beam Section TP F 100 or a Beam Bracket/Cantilever bracket AK F 100. The "T" variation with octagonal insert allows full use of the beam section, permitting screwed connections anywhere along the length without internal screw clashes.

Installation

Depending on the situation, the following installation types are recommended:
a) Directly to building structure: 4 suitable wall anchors and 4 Self Forming Screws FLS applied to the square/octagonal insert

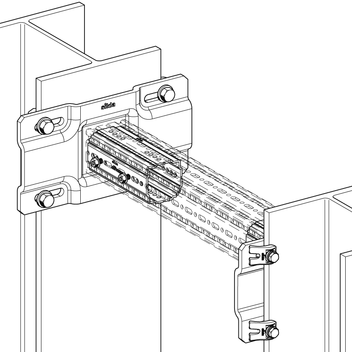

b) To traditional steel beams between 80 – 310 mm flange dimensions: 1 Assembly Set 5P M12 S, M16 S and 4 Self Forming Screws FLS applied to the square/octagonal insert
c) To traditional steel beams > 120 flange dimension: with on-demand Adaptor
Plate (tbc)
d) To Sikla Simotec steel beams 100/120: with Bracket Plates FV 100/120 when positive mechanical connection required

The Beam Section TP F 100 connected to the End Support WBD F 100 has to be screwed with 4 Self Forming Screws FLS F. On each of the opposite sides 2 Self Forming Screws FLS F are required. The permissible distance between base plate WBD and profile must not exceed 30 mm.

Technical Data

Type
Base plate
finish
for flange
width
[mm]
Dimensions
of base
plate
Slots in base
plate
[l x b)
WBD F 100-80/120 flat 80 - 120 220 x 220 x 12 30 x 14
WBD-P F 100-121/160 corrugated 121 - 160 320 x 260 x 12 20 x 14
WBD-P F 100-161/200 corrugated 161 - 200 320 x 310 x 12 20 x 18
WBD-P F 100-201/310 corrugated 201 - 310 420 x 220 x 12 55 x 18
WBD F 100-T flat 80 - 120 220 x 220 x 12 30 x 14

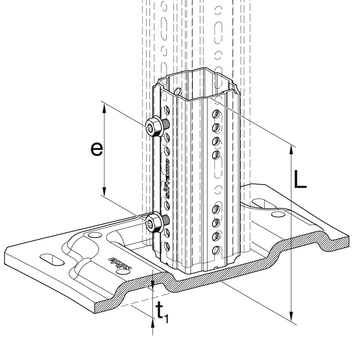

Type
e
[mm]
L
[mm]
t1
[mm]
Slots in base
plate for
WBD F 100-80/120 max. poss. distance 232 - M12
WBD-P F 100-121/160 max. poss. distance 232 27 M12
WBD-P F 100-161/200 max. poss. distance 232 27 M16
WBD-P F 100-201/310 max. poss. distance 232 27 M16
WBD F 100-T max. poss. distance 192 - M12

configuration:
Plate welded to square F 100 resp. octagonal element F 100
(only WBD F 100-T)
material:
Steel, HCP

Approvals / Conformity

CE mark (Declaration of performance see www.sikla.co.uk/service/downloads)
ETA-24/0471

TypeW
[kg]
Quantity
[pack]
Part
number
WBD F 100-80/1206.11 113075
WBD-P F 100-121/1609.71 117167
WBD-P F 100-161/20011.21 117168
WBD-P F 100-201/31010.31 117169
WBD F 100-T5.31 113079
