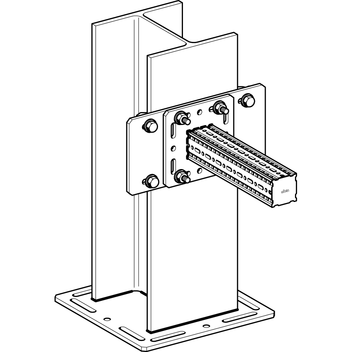

Application

Interface element to enable the connection of standard endplates of Beam Brackets TKO F80 or F100, TKO 100 or 120 to primary steel with flange width >120 mm. Alternatively this product may be used to achieve a greater distance between wall anchor positions when required by the anchor calculation’s result.

Scope of delivery

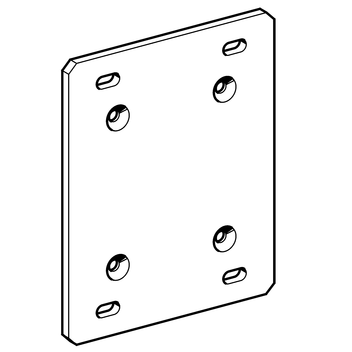

Adapter Plate AP

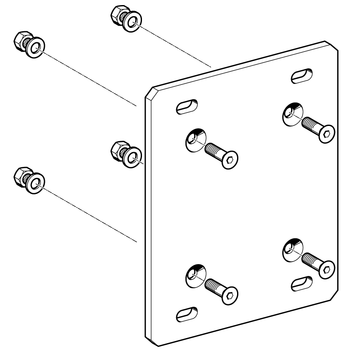

4 Countersink Screws M12 x 40
4 Hexagon Nuts M12
4 Washers

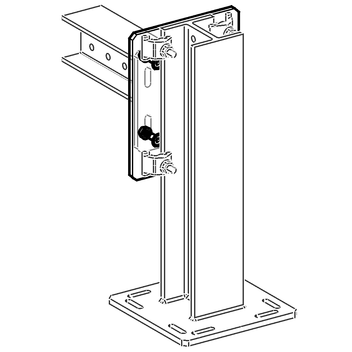

Installation

Connect the Adapter Plate AP to the Beam Bracket TKO’s end plate by using the accessories above. Then continue with either heavy-duty anchors or Assembly Set 5P/Beam Clips as required by the building structure.

Technical Data

Type
Dimension of Base Plate
L x B [mm]
Perforation for
Connection to flange width
[mm]
AP 121/160 320 x 260 x 12 M12 121 - 160
AP 161/200 320 x 310 x 12 M16 161 - 200
AP 201/300 420 x 220 x 12 M16 201 - 300
AP 301/310 440 x 220 x 12 M16 301 - 310

Material:
Joining Plate
Steel, HCP
Bolts
Steel DIN 7991, class 8.8, HCP
Nuts
Steel, class 8, HCP
Washers
Steel, HCP
TypeW
[kg]
Quantity
[pack]
Part
number
AP 121/1607.71 183953
AP 161/2009.31 183962
AP 201/3008.41 183980
AP 301/3109.81 113129
