Application

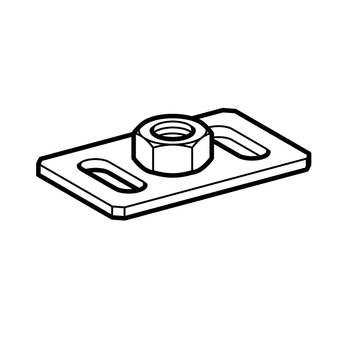

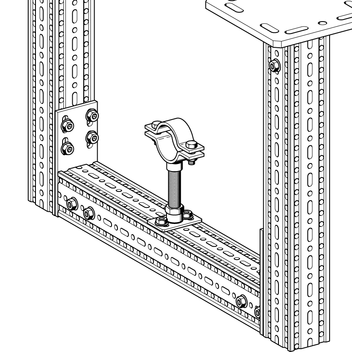

Interface component to connect threaded bar and threaded tube to Beam Section F 80 or F 100.

Installation

Requires 2 x Self Forming Screw FLS per Mounting Plate GPL.

Technical Data

Type
Tension
[kN]
Perm. bending moment
[Nm]
GPL F 80-1/2" 8.0 53
GPL F 80-M10 8.0 15
GPL F 80-M12 8.0 26
GPL F 80-M16 8.0 62
GPL F 100-1/2" 8.0 53
GPL F 100-M10 8.0 15
GPL F 100-M12 8.0 26
GPL F 100-M16 8.0 62

Dimensions of base plate GPL F 80:
80 x 50 x 4 mm
Dimensions of base plate GPL F 100:
100 x 50 x 4 mm
Material:
Steel, HCP
TypeW
[kg]
Quantity
[pack]
Part
number
GPL F 80-1/2"0.150 192900
GPL F 80-M100.150 113004
GPL F 80-M120.150 112911
GPL F 80-M160.250 195833

GPL F 100-1/2"0.250 113089
GPL F 100-M100.250 113338
GPL F 100-M120.250 113646
GPL F 100-M160.250 113090
