Section Attachment Accessories

U Bolt Docking Bracket F

Application

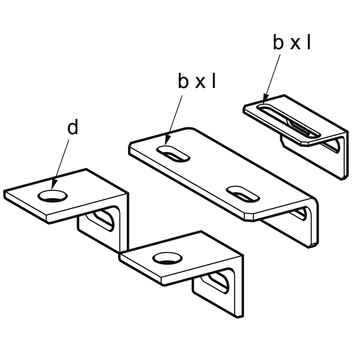

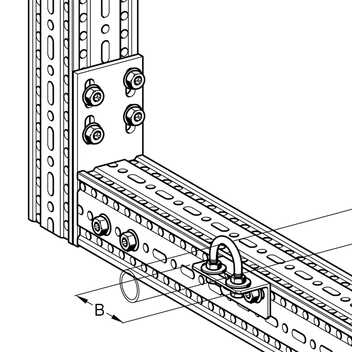

Docking bracket to connect standard U-Bolts required for pipework to the supporting Beam Sections, Cantilever Brackets and Beam Brackets F80 or F100.

Scope of delivery

For U-bolts ≥ 4" always 2 U-bolt fastenings F are needed.

Technical Data

Material:
Steel, HCP
TypeB
[mm]
W
[kg]
Quantity
[pack]
Part
number
UB F 1/2" - 1 1/2"850.1325 192931
UB F 2" - 3"1650.4410 196212
UB F 4" - 6"450.1820 113124
UB F 8" - 12"450.1820 113125
UB F 378 - 530450.1820 113126
