Sections and Welded End-Plate Beams

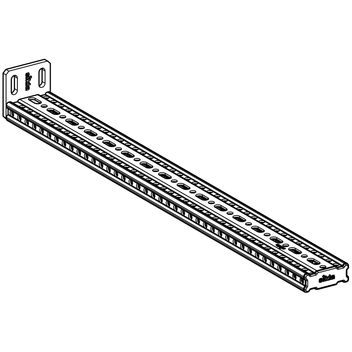

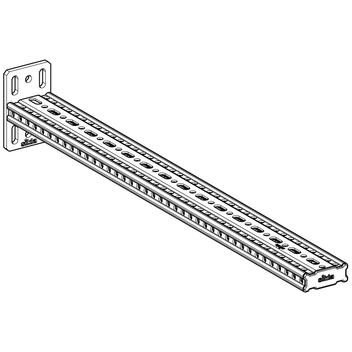

Cantilever Bracket AK F 80/30

Application

Galvanised box-section with welded end-plate to serve as cantilever
arm. May be used as a crossbar when combined with End Support STA and 4 x Self Forming Screw FLS.

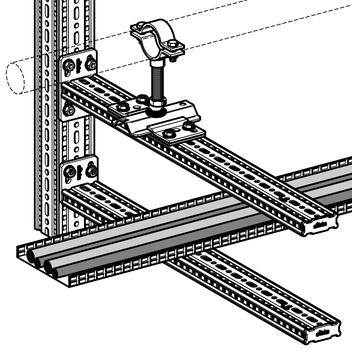

Installation

With 4 x Self Forming Screw FLS when fixed to another siFramo box-
section.

Technical Data

Type

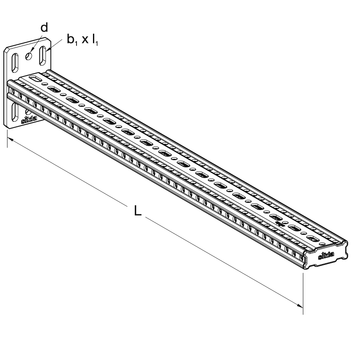

Dimensions of base plate
[mm]
L
[mm]
b1 x l1
[mm]
d
[mm]
AK F 80/30-400 130 x 80 x 8 400 11 x 20 14
AK F 80/30-800 130 x 80 x 8 800 11 x 20 14
AK F 80/30-E-400 80 x 80 x 8 400 11 x 20 -
AK F 80/30-E-800 80 x 80 x 8 800 11 x 20 -

Configuration:
Plate welded with Beam Section F 80/30
Material:
Plate:
Steel, HCP
Beam section:
Steel, HCP

Approvals / Conformity

CE mark (Declaration of performance see www.sikla.co.uk/service/downloads)

Declaration of performance Cantilever Bracket AK F PDF | 1.6 MB

TypeW
[kg]
Quantity
[pack]
Part
number
AK F 80/30-4002.41 113064
AK F 80/30-8004.21 113065
AK F 80/30-E-4002.21 113625
AK F 80/30-E-8004.01 113626
