Assembly Groups

Assembly Group BG60 T100-1/2"

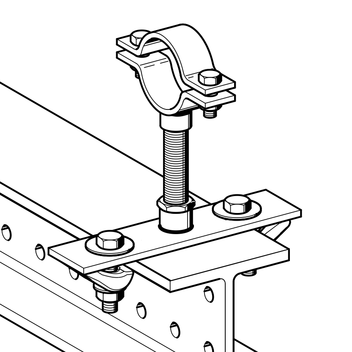

Application

An Assembly Group containing components to make up a permanent pipe connection with the heavy Pipe Clamp Stabil I-1/2". The Assembly Group is designed for use with the Beam System 100 and steel beams up to a flange width of 100 mm. It is connected using the Assembly Set MS 5P, and the height is adjusted via the Threaded Tube 1/2".

Scope of delivery

Each Assembly Group is pre-assembled, packed and labeled.

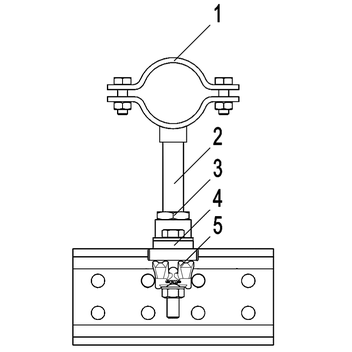

Parts list:
Item 1 Pipe Clamp Stabil I-1/2".
  Assembly Kit MKit T 100 1/2" consists of:
Item 2 Threaded Tube GR 1/2" x 200
Item 3 Locking Nut NT G 1/2"
Item 4 Mounting Plate GPL Stabil R1/2"-100
Item 5 Beam Clip SPA 5P AU M12 HCP
Hexagon Bolt M12x60 HCP
Hexagon Nut M12 HCP
Washer HCP

Installation

The assembly of the individual components to form an Assembly Group is carried out during the course of pipe installation on the construction site.

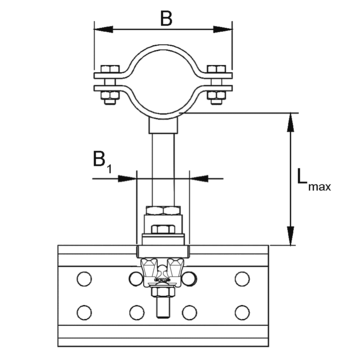

Technical Data

Lmax, vertical = 200 mm
Lmax, horizontal = 150 mm

Material:
Pipe clamp and connecting parts:
Steel, HCP
Bolts and nuts:
Steel, HCP
TypeSize range
[mm]
B1
[mm]
B
[mm]
W
[kg]
Quantity
[pack]
Part
number
DN 1516 - 2250851.751 112724
DN 2023 - 2750921.761 112725
DN 2530 - 34501001.791 112726
DN 3239 - 44501121.831 112727
DN 4044 - 49501171.851 112728
DN 5057 - 61501392.071 112729
DN 6573 - 77501562.151 112730
DN 8085 - 89501682.211 112731
DN 100109 - 116501942.501 112732
