Stabil Form C LK
Application
Industrial pipe clamp following VGB-R 510 L for standard industrial pipe supports. The pipe clamp Stabil Form C LK can be used as pendulum suspension or as part of a rod hanger.

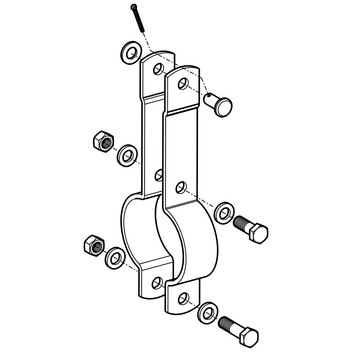

Scope of delivery
With screws and nuts (class 8.8 or 8) and bolts incl. splint. The pipe clamp is delivered pre-assembled.
Technical Data
Type | perm. load [kN] | recommended Rod Hanger Arrangement LKV |
---|---|---|
22 - 89 | 4.0 | LKV M10 / LKV M12 |
115 - 169 | 5.4 | LKV M16 |
220 - 324 | 9.3 | LKV M16 |
The implementation and construction requirements of the components, their design as well as their verifications and load tests were carried out following the standards VGB R 510 L part I, KTA 3205.3 and DIN EN 13480-3.

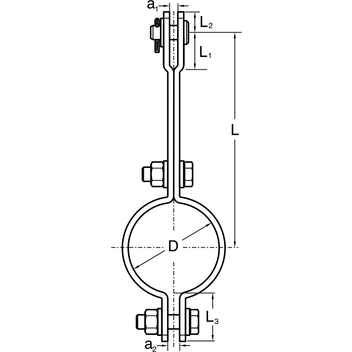

Type | D [mm] | a1 [mm] | a2 [mm] | L [mm] | L1 [mm] | L2 [mm] | L3 [mm] | B x S [mm] |
---|---|---|---|---|---|---|---|---|
22 | 22 | 7 | 10 | 90 | 29 | 12 | 33 | 30 x 5 |
27 | 27 | 7 | 10 | 93 | 29 | 12 | 34 | 30 x 5 |
34 | 34 | 7 | 10 | 107 | 29 | 12 | 35 | 30 x 5 |
44 | 44 | 7 | 10 | 113 | 29 | 12 | 36 | 30 x 5 |
49 | 49 | 7 | 10 | 126 | 29 | 12 | 36 | 30 x 5 |
61 | 61 | 7 | 10 | 144 | 28 | 18 | 40 | 40 x 5 |
77 | 77 | 7 | 10 | 183 | 28 | 18 | 41 | 40 x 5 |
89 | 89 | 7 | 10 | 189 | 28 | 18 | 41 | 40 x 5 |
115 | 115 | 11 | 16 | 221 | 38 | 23 | 41 | 50 x 6 |
140 | 140 | 11 | 16 | 234 | 38 | 23 | 41 | 50 x 6 |
169 | 169 | 11 | 16 | 249 | 38 | 23 | 41 | 50 x 6 |
220 | 220 | 11 | 16 | 280 | 38 | 23 | 47 | 50 x 8 |
273 | 273 | 11 | 16 | 311 | 38 | 23 | 56 | 60 x 8 |
324 | 324 | 11 | 16 | 336 | 38 | 23 | 56 | 60 x 8 |
Material: | Steel, HCP |
