Ever more application options

Flexible steel fabrication

The siFramo modular system offers 4 high load bearing section sizes from a space saving 80/30 to a wide spanning 100/160 and they can all be combined with one another.

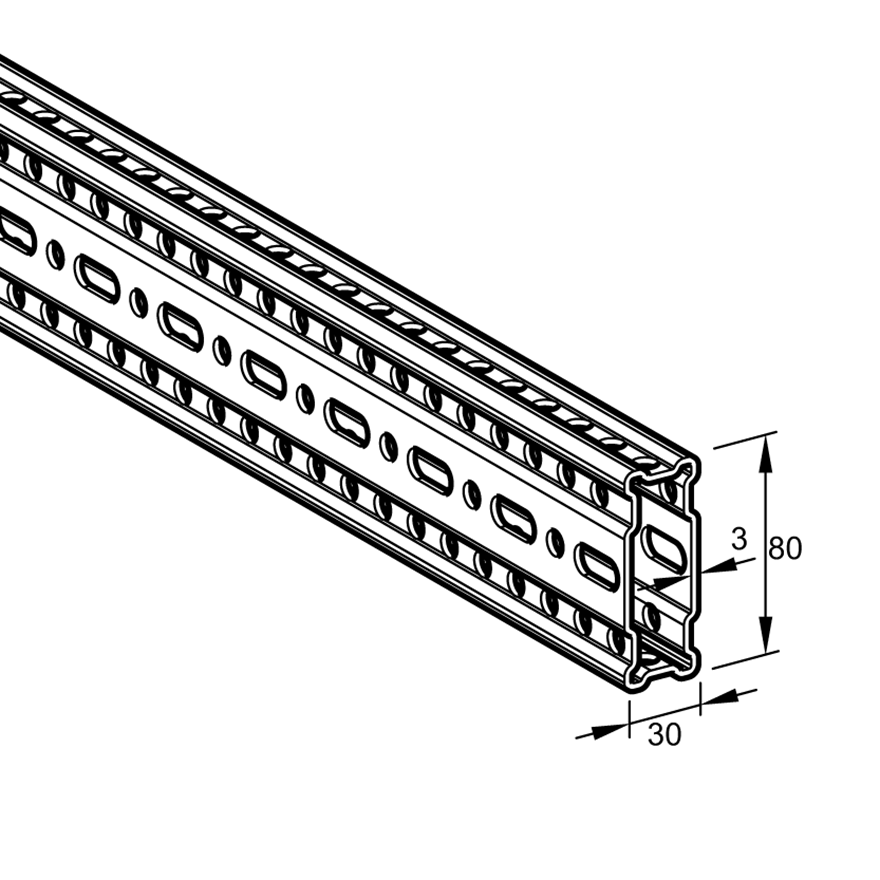

Trägerprofil TP F80/30
Beam Section TP F80/30

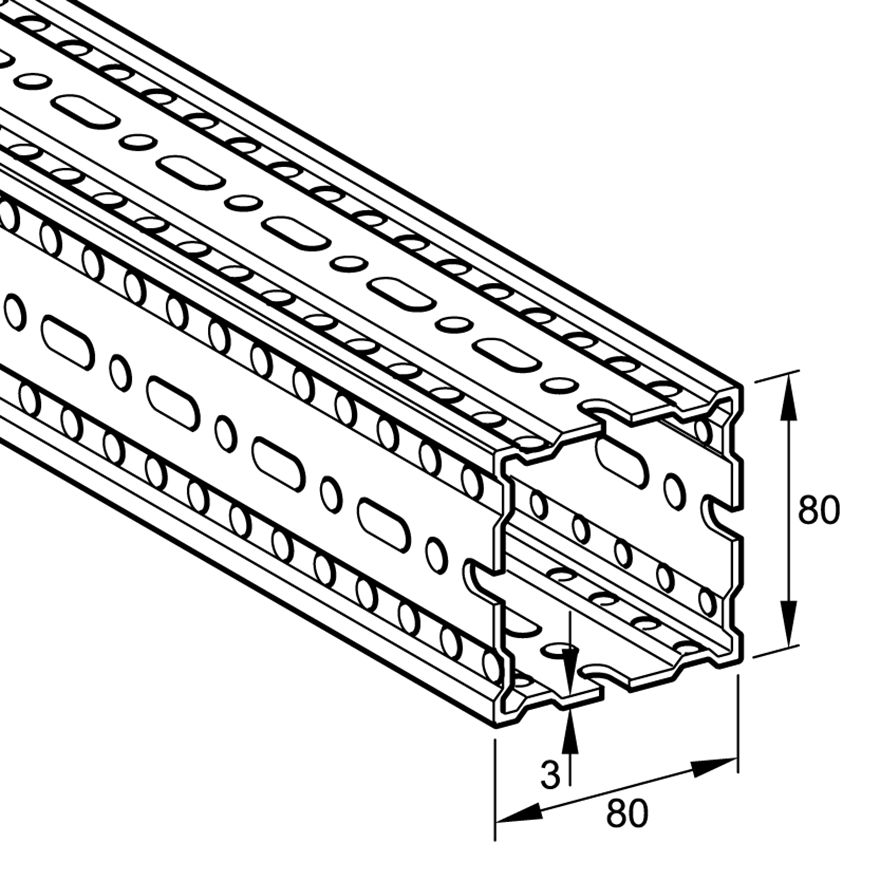

Trägerprofil TP 80/80
Beam Section TP 80/80

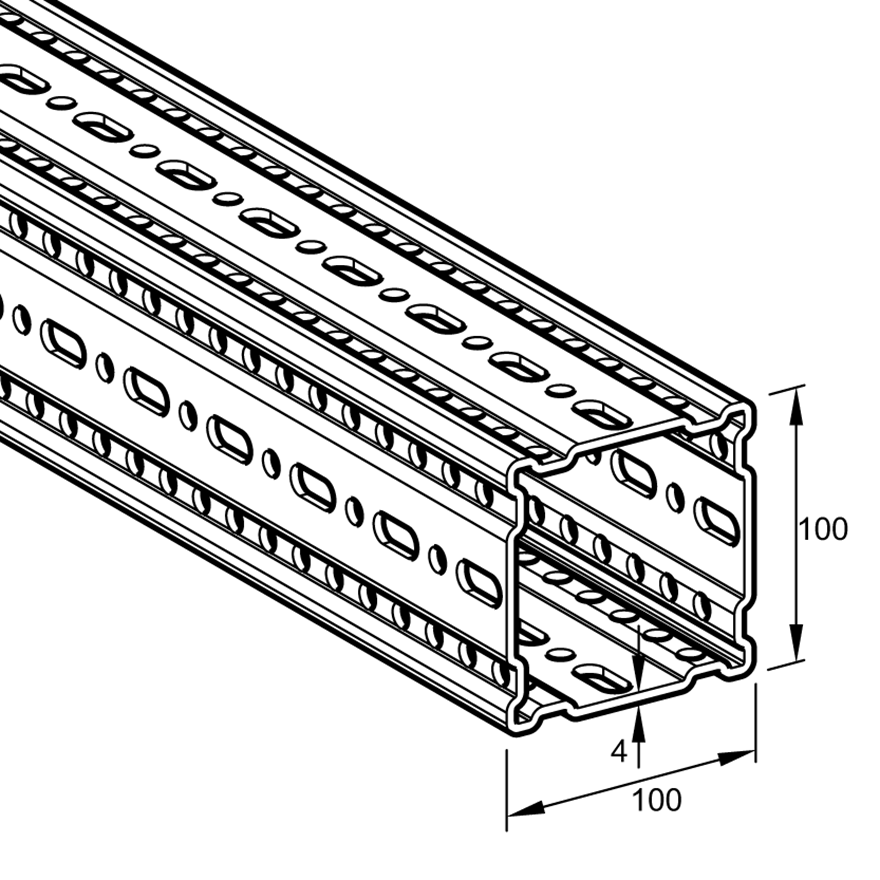

Trägerprofil TP 100/100
Beam Section TP 100/100

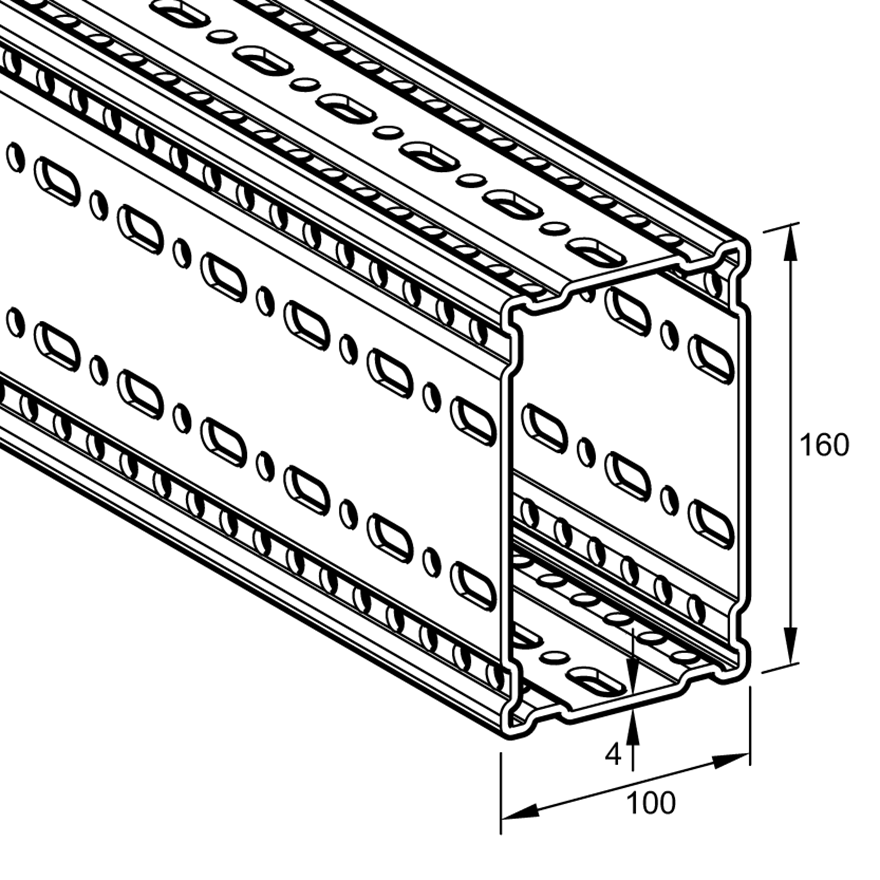

Trägerprofil TP 100/160
Beam Section TP 100/160

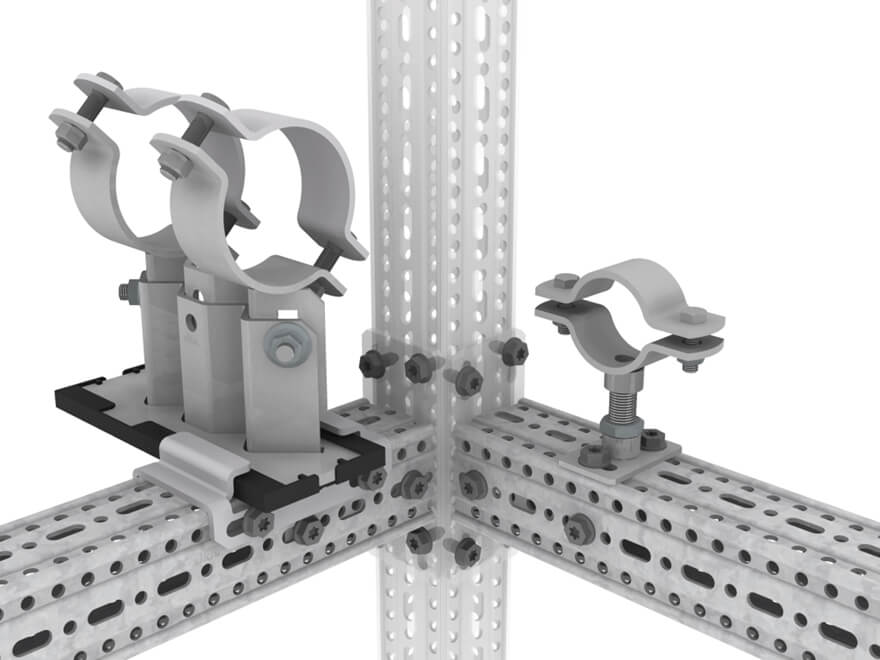

There is a comprehensive range of section attachment accessories, including those for Simotec pipe shoes.
You will find all details of the siFramo system in our e-catalogue.

Adaptation to any primary structure

Betonträger

Connections include:

  • Clamping to steel beam flanges
  • Welding to primary steel surfaces
  • Fastening to concrete
  • Non-penetrative foot plates

Stepless component positioning on all 4 sides of the section

Keine Muttern, keine Behinderung innerhalb des Profils
No fastener clashes inside the section

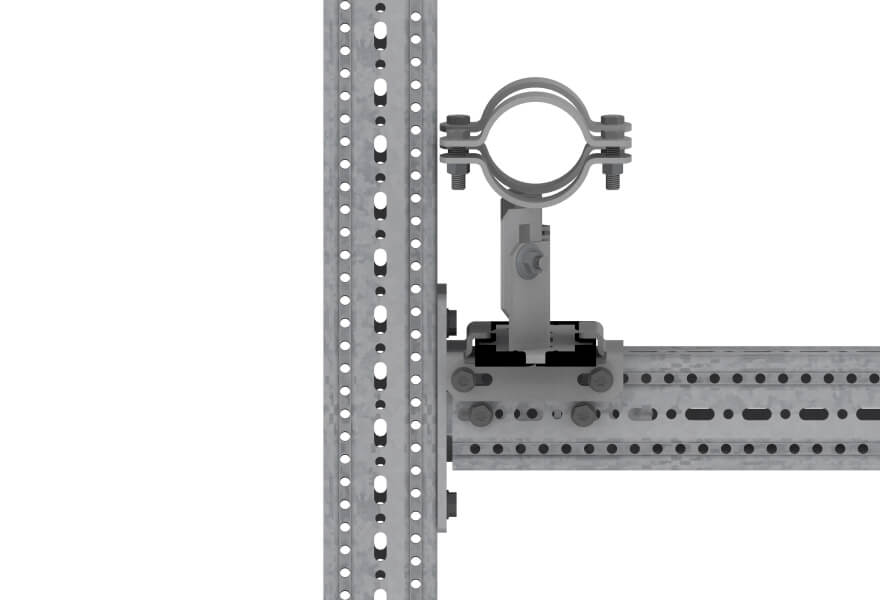

Anschlussmöglichkeiten bis in die Knotenecke
Full utilisation of beam surfaces – pipe and cable connections possible right up to the beam / column interface

Additional benefits
