Application

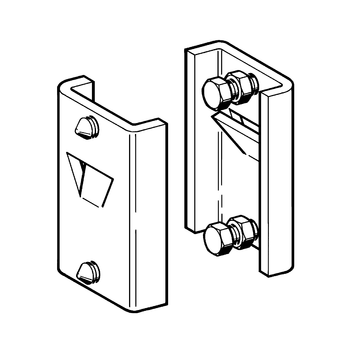

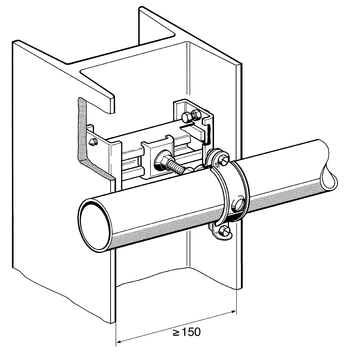

Mounting element to be fixed within the flanges of I- and U-shaped beams. The systems (such as pipes, etc.) supported this way may run parallel or at right angles to the direction of the I or U beam.

Also suitable as support for crossbars between two vertically adverse arranged profiles.

Scope of delivery

Pre-assembled

Installation

The tightening moment of the clamping bolts must be between 1 (minimum) and 1 1/2 (maximum) turns; then tighten locking nuts.

Note:
The length of the channel to be cut : inside diameter of beam less 25 mm

Technical Data

Permissible load per set:
Crossbar support: (2 sets) 5.0 kN/crossbar
Single attachment: (1 set) 2.5 kN


The maximal torsional moment of the channel is to be taken into consideration.

Material:
Cold-worked steel, electro-galvanised

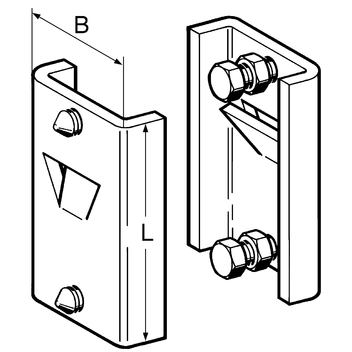

TypeFor Channel sizeMinimum beam
type [mm]
L
[mm]
B
[mm]
W
[kg]
Pack.
[Set]
Part
number
SKL41/41/2.5 u, 41/45/2.5IP 140. U 200100620.935 145671
