MODULAR
STEELWORK SOLUTIONS

Application

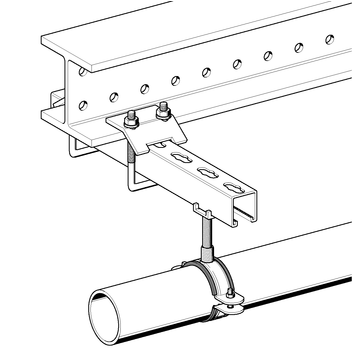

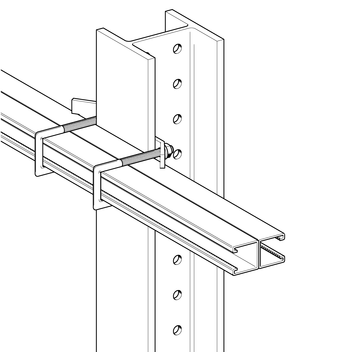

Clamping element for bi-lateral attachment of crossbars to steel beams, independent from the channel's opening.

Installation

To be used in pairs.
Length calculation = Beam/Girder flange thickness + min. 2 x 50 mm overhang

Technical Data

Type
Max. perm. load tension
Tightening torque
M8 3.5 kN per U-Holder 20 Nm
M10 5.0 kN per U-Holder 30 Nm

Material:
Steel, electro-galvanised
TypeFor channel
height [mm]
Max. flange
thickness [mm]
ThreadW
[kg]
Quantity
[pack]
Part
number
41 - M820 - 6216M80.3120 192566
41 - M1020 - 6216M100.4120 183620
41 D - M1080 - 12416M100.4820 191657
