End Connectors and Fastening

End Support STA F 100 - 100/160

Application

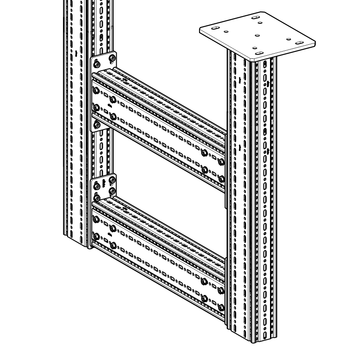

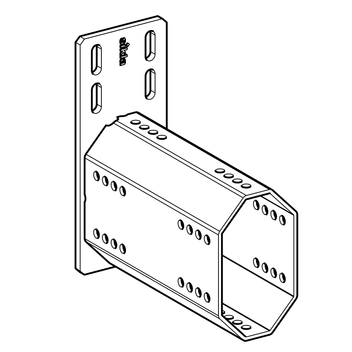

Plug-in component designed to create an endplate at the open end of a Beam Section TP F 100 and TP F 100/160 or a Cantilever bracket AK F 100.

Installation

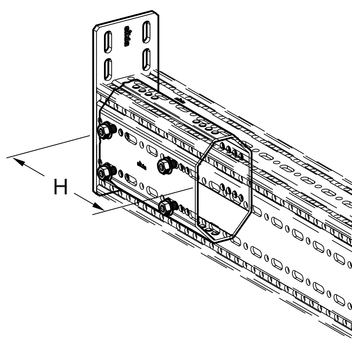

For the connection to Beam Section TP F 100 or TP F 100/160 (flange side 100) 4 Self Forming Screws FLS F are necessary. The Beam Section TP F 100/160 connected to the End Support STA F 100 - 100/160 has to be screwed with 8 Self Forming Screws FLS F. On each of the broader sides 4 Self Forming Screws FLS F are necessary.

Technical Data

Type
Dimensions of base plate
[mm]
Slotting in base plate
for
H
[mm]
STA F 100 - 100/160 270 x 100 x 8 M10 238
STA F 100 - 100/160 E 245 x 100 x 8 M10 238

Configuration:
Base plate welded to Octagon F 100/160
Material:
Plate:
Steel, HCP
Octagon:
Steel, HCP

Approvals / Conformity

CE-mark (Declaration of performance www.sikla.com/downloads)

Declaration of performance End Support STA F PDF | 189.6 KB

TypeW
[kg]
Quantity
[pack]
Part
number
STA F 100 - 100/1604.41 114878
STA F 100 - 100/160 E4.21 114879
