End Connectors and Fastening

End Support STA F 100

Application

Plug-in component designed to create an endplate at the open end of a Beam Section TP F 100 or a Cantilever bracket AK F 100. Variation types F 100-80 (E) are designed to combine F 100 with F 80 beam sections. Octagonal insert allows full utilisation of beam section within the space required by the End Support STA itself.

Installation

Depending on the situation, different options are recommended:

a) With 2x4 Self Forming Screws FLS when used to connect 2 Beam Sections.
b) With 4 Self Forming Screws FLS applied to the octagonal insert and 2 suitable wall anchors/fixings when connected to the building structure.

The Beam Section TP F 100/100 connected to the End Support STA F 100 has to be screwed with 4 Self Forming Screws FLS F. On each of the opposite sides 2 Self Forming Screws FLS F are necessary. Alternatively with two suitable wall anchors through holes “A” when fixed directly to building structure.

Technical Data

Type
Dimensions of base plate
[mm]

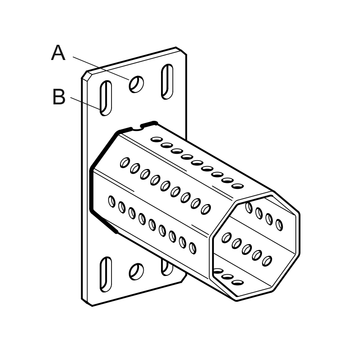

A
[mm]
B
[mm]

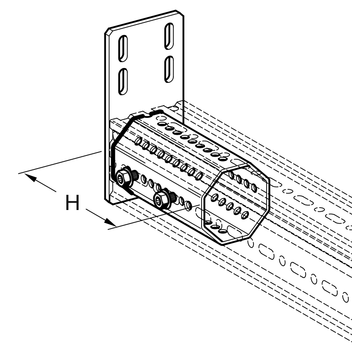

H
[mm]
STA F 100 210 x 100 x 8 14 20 x 11 188
STA F 100-E 185 x 100 x 8 - 20 x 11 188
STA F 100-80 210 x 100 x 8 14 20 x 11 148
STA F 100-80-E 185 x 100 x 8 - 20 x 11 148

Configuration:
Base plate welded to Octagon F 100 or F 80
Material:
Base plate:
Steel, HCP
Octagon:
Steel, HCP

Approvals / Conformity

CE mark (Declaration of performance see www.sikla.co.uk/downloads)

TypeW
[kg]
Quantity
[pack]
Part
number
STA F 1002.41 113073
STA F 100-E2.21 113074
STA F 100-802.01 113337
STA F 100-80-E1.81 113481
