End Connectors and Fastening

End Support STA F 160-100-E

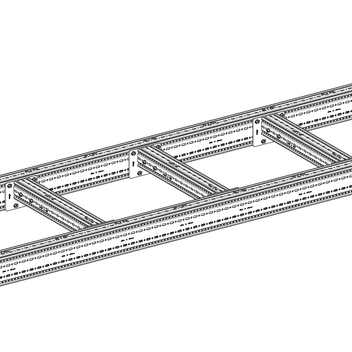

Application

Plug-in component designed to create an end plate at the open end of a Beam Section TP F 100/160.

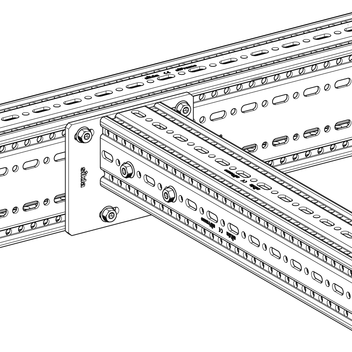

Installation

For the connection to Beam Section TP F 100/160 (flange side 160) 4 Self Forming Screws FLS F are necessary. The Beam Section TP F 100 connected to the End Support STA F 160-100-E has to be screwed with 4 Self Forming Screws FLS F. On each of the broader sides 2 Self Forming Screws FLS F are necessary. Fixing to walls and ceilings with suitable wall anchors M10.

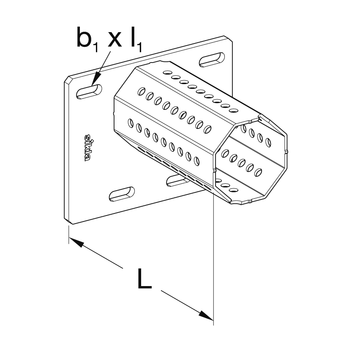

Technical Data

Type
Dimensions of base
plate [mm]
L
[mm]
b1 x l1
[mm]
STA F 160-100-E 160 x 200 180 11 x 20

configuration:
Plate welded with to Octagon F 100
material:
Steel, HCP

Approvals / Compliance

CE mark (Declaration of performance see www.sikla.co.uk/downloads)

TypeW
[kg]
Quantity
[pack]
Part
number
STA F 160-100-E3.11 116875
