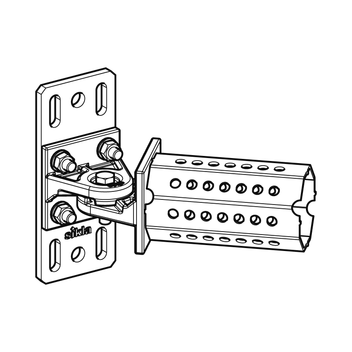

Pivot Joint GE F 80

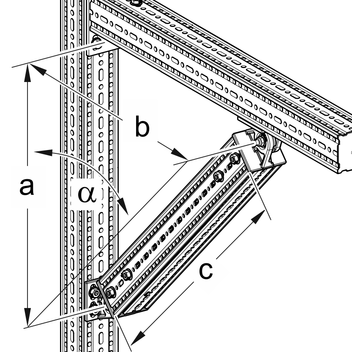

Applicable as a bracing element for single-arm cantilevers in conjunction with siFramo 80 section, and for the knee-brace reinforcing of siFramo 80 frame constructions. The pivot can be installed with angles from 25° to 155°.
Attachment of Joint GE F 80 to Beam Section TP F 80 by means of 4 Self Forming Screws FLS F at the base plate. The support profile TP F 80 plugged onto the octagon is also attached by means of 4 Self Forming Screws, so 8 Self Forming Screws are necessary in total.
After installation at the desired angle the screws have to be tightened with 40 Nm.

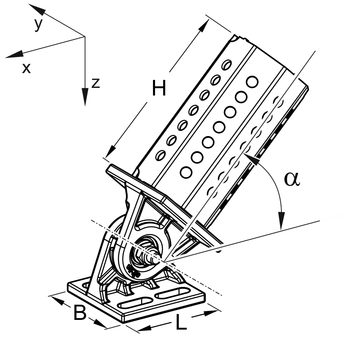

| Type|| Height H|
| Length L|
| Width B|
| Angle α|| Dimensions of|
|GE F 80 - 80||140||80||80||25° - 155°|| -|
|GE F 80 - 80 q||140||80||80||25° - 155°||190 x 80 x 8|
| Material:||Steel, HCP|
