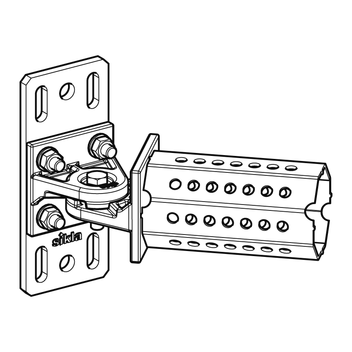

Pivot Joint GE F 100
Applicable as a bracing element for single-arm cantilevers in conjunction with siFramo 100 section, and for the knee-brace reinforcing of siFramo frame constructions. The pivot can be installed with angles from 25° to 155°.
Attachment of the Joints to Beam Section TP F 100 by means of 4 Self Forming Screws FLS F at the base plate. The support profile TP F 80 or TP F 100 (depending on joint type) plugged onto the octagon is also attached by means of 4 Self Forming Screws, so 8 Self Forming Screws are necessary in total.
After installation at the desired angle the screws have to be tightened with 40 Nm.
| Type|| Height H|
| Length L|
| Width B|
| Angle α|| Dimensions of|
|GE F 100 - 80||140||100||100||25° - 155°|| -|
|GE F 100 - 80 q||140||100||80||25° - 155°|| 210 x 100 x 8|
|GE F 100 - 100||180||100||100||25° - 155°|| -|
|GE F 100 - 100 q||180||100||100||25° - 155°||210 x 100 x 8|
| Material:||Steel, HCP|
