End Support STA F - E 45°
Application
The End Support STA F - E 45° is designed to generate a 45° bracing element in combination with F80 beam sections or F80 Cantilever Brackets.
Installation

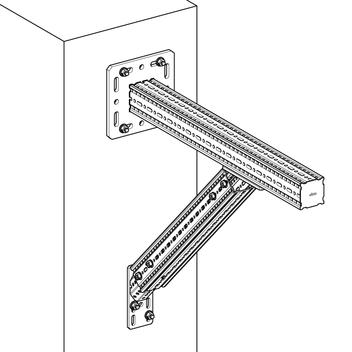

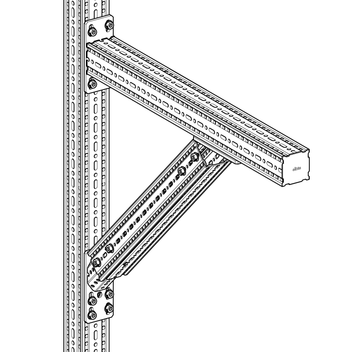

Depending on the situation on site there are two options to use this product:
a) | Connection within the siFramo system by connecting with 4 FLS screws to each beam section F80. |
b) | Connection to building fabric by using 2 suitable wall anchors in diagonal configuration. |
Technical Data

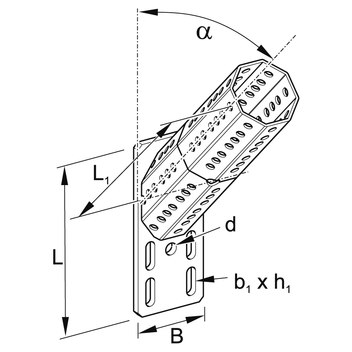

Type | L [mm] | B [mm] | L1 [mm] | d [mm] | b1 [mm] | h1 [mm] | α [°] |
---|---|---|---|---|---|---|---|
STA F 80-E 45° | 190 | 80 | 244,5 | 14 | 11 | 20 | 45 |
Configuration: | Base plate welded to Octagon F 80 |
Material: | Steel, HCP |
Approvals / Conformity
CE mark (Declaration of performance see www.sikla.co.uk/downloads)
