End Connectors and Fastening

End Support STA F 80/30

Application

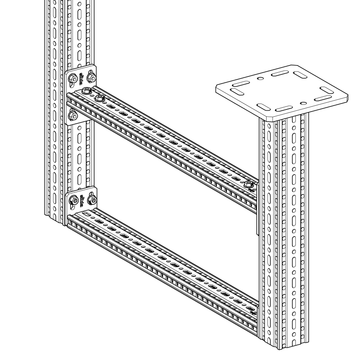

Plug-in component designed to create an end plate at the open end of a beam section TP F 80 or TP F 80/30. A connection to Cantilever brackets AK F 80 or AK F 80/30 can also be realised.

Installation

Depending on the situation, different options are recommended:

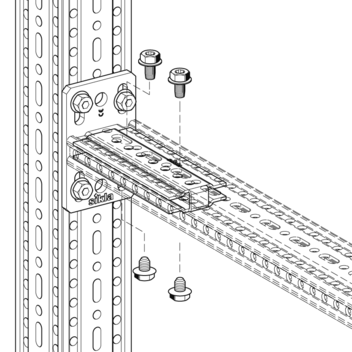

a) With 2 x 4 Self Forming Screws FLS when used to connect 2 Beam Sections.
b) With 4 Self Forming Screws FLS applied to the insert and 2 suitable M12 wall anchors/fixings when connected to the building structure.

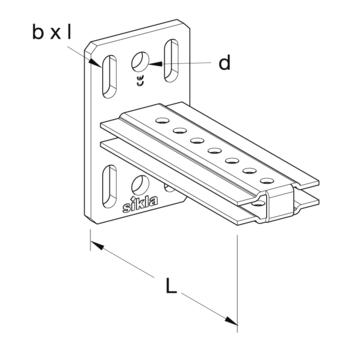

Technical Data

Type
Dimensions of
base plate [mm]
L
[mm]
d
[mm]
b1 x l1
[mm]
STA F 80/30 130 x 80 x 8 169 14 11 x 20

material:
Steel, HCP

Approvals / Conformity

CE mark (Declaration of performance see www.sikla.co.uk/downloads)

TypeW
[kg]
Quantity
[pack]
Part
number
STA F 80/301.11 117160
