End Support STA F 80/30 E

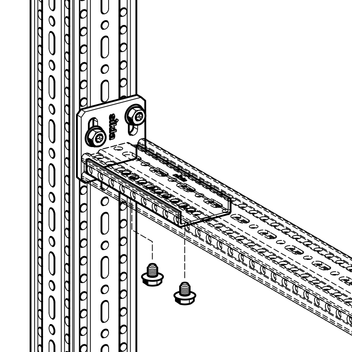

Plug-in component designed to create an endplate at the open end of a Beam Section TP F80/30 a Cantilever bracket AK F80/30.
The Beam Section TP F 80/30 E connected to the End Support STA F 80/30 E has to be screwed with 2 Self Forming Screws FLS F.

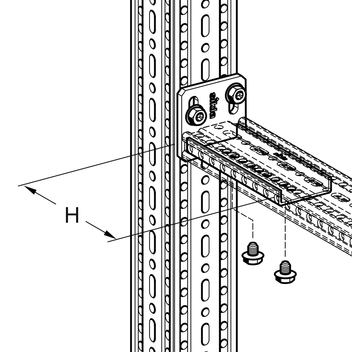

| Type|| Dimensions of Base plate|
| Slots in base plate for|| H|
|STA F 80/30-80-E||80 x 80 x 8||M10||178|
| Material:||Steel, HCP|
Approvals / Compliance
CE mark (Declaration of performance see www.sikla.co.uk/service/downloads)
