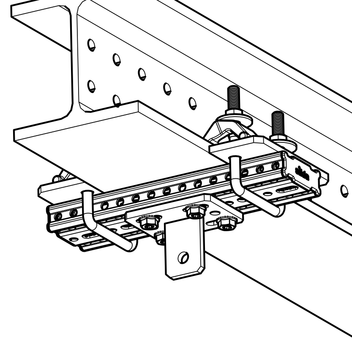

Beam Connection LKA
Connecting assembly for the direct attachment of rod hanger assemblies to beam sections with a flange width 100-310mm. The pre-welded Eye-Plate which is fastened to the siFramo80/30 section serves as a basic element for the connection of the Rod Hanger Load Chain Assembly LKV in sizes M10 up to M16 rod and Pipe Clamps type Stabil Form C LK.
Scope of delivery
Support assembly to connect the rod hanger load chain LKV to the beam, consisting of:
1 Beam Section siFramo 80/30 (see length variants in table below) with pre-welded siFramo Eye-Plate HP F 80
2 U-Holders SB F 80/30-40
Connect the Beam Section siFramo 80/30 length with pre-welded siFramo Eye-Plate HP F 80 to the underside of the existing steel beam by means of the U-Holders SB F 80/30-40.
Tightening torque for the U-Holder clamps : 40 Nm

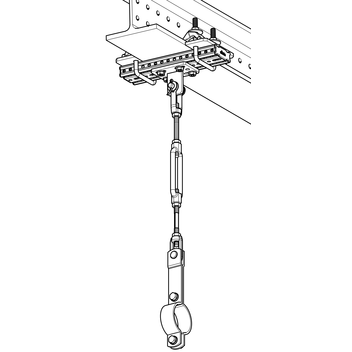

Type A: Load Chain runs crosswise to the beam
Type B: Load Chain runs longitudinally to the beam
Max. perm. tensile load according beam width:
| Type|| 100 - 199 mm|| 200 - 310 mm|
|M10||10.9 kN|| 10.8 kN|
|M12||11.5 kN|| 11.3 kN|
|M16||12.1 kN||11.9 kN|
The implementation and construction requirements of the components, their design as well as their verifications and load tests were carried out following the standards VGB R 510 L part I, KTA 3205.3 and DIN EN 13480-3.

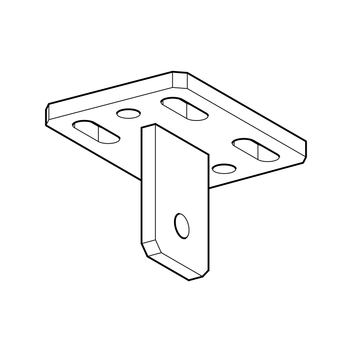

siFramo Eye-Plate HP F 80:

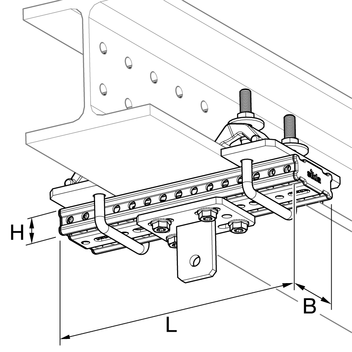

| B |
| S |
| Beam width|
|100 - 160||300||80|| 30|
|161 - 310||440||80||30|
| Material: ||Steel, HCP|
