Section Attachment Accessories
Lifting Lug KLA F
Application
Fixture for lifting siframo skids by using a lifting tool (e.g. crane). Indestructible design for multiple lifting operations in multiple projects.
Installation

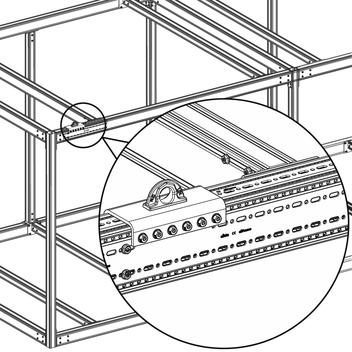

The Lifting Lug KLA F is connected to Beam Sections TP F:
TP F 80: 8 x SCR FLA TT M10 x 30 HCP (item code 116479)
TP F 100 and 100/160: 12 x SCR FLA TT M10 x 30 HCP (item code 116479)
(Lifting Lug supplied with the correspondent screws.)
Tightening torque SCR FLA TT: 20 Nm
Technical Data

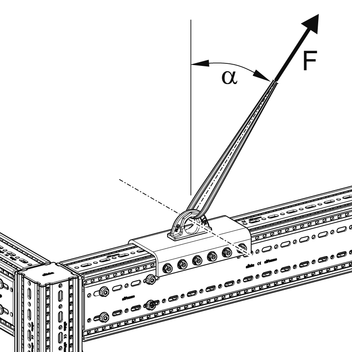

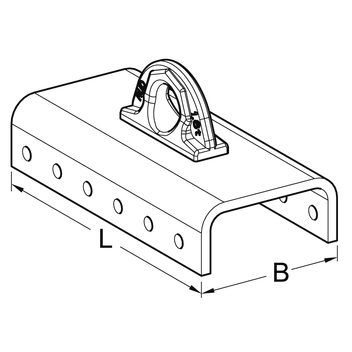

| Type | L [mm] | B [mm] | Fmax [kN] α = 0° | Fmax [kN] α ≥ 0° - 45° | Fmax [kN] α ≥ 45° - 60° |
|---|---|---|---|---|---|
| KLA F 80 | 200 | 100 | 16,0 | 11,0 | 8,0 |
| KLA F 100 | 250 | 120 | 16,0 | 11,0 | 8,0 |
| Material: | Steel |
| Surface: | power coating, RAL 2005 (signal orange) |
