MODULAR
STEELWORK SOLUTIONS

Application

Interface elements to connect welding lugs of engineered primary pipe supports such as Rod Hangers, Constant- and Variable Hangers & Supports to Beam Sections TP F, Cantilever Brackets AK F and Beam Brackets TKO F. Outside the siFramo system type “Universal" may be used to connect to I-beams up to a flange width of 300mm. The HCP-coating is welding-compatible.

Installation

Depending on the type, different installation methods are recommended:

a)

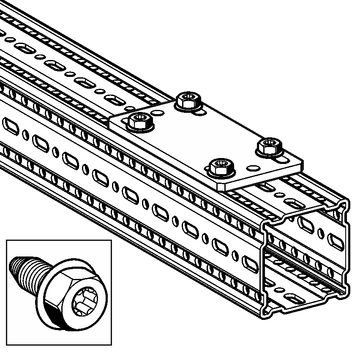

SPL F 80 and F 100 with 4 x Self Forming Screw FLS

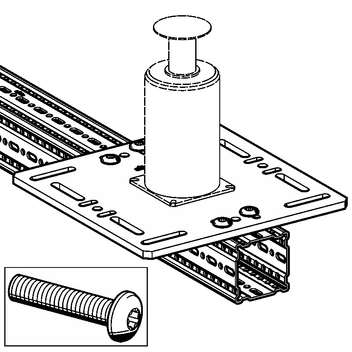

b) SPL Universal with Flange Screws SCR FLA TT M10 x 30 (item code 116479)
c)

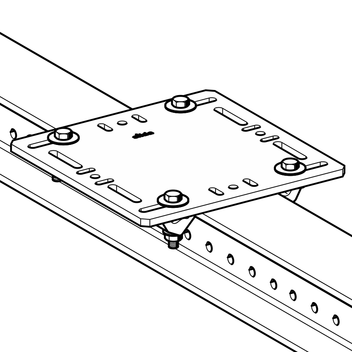

SPL Universal with Assembly Set 5P M12 S to flanges of existing steel between 100 - 300 mm.

Technical Data

Typ
Installation surface
[mm]
Mounting Plate size
[mm]
SPL F 80 70 x 20 110 x 80 x 8
SPL F 100 80 x 80 180 x 90 x 8
SPL universal 220 x 220 370 x 370 x 12

Material:
Steel, HCP
TypeW
[kg]
Quantity
[pack]
Part
number
SPL F 800.51 113831
SPL F 1001.01 113635
SPL universal11.91 113636
