Beam Section TP F 80
Application

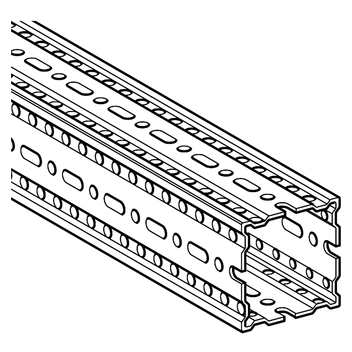

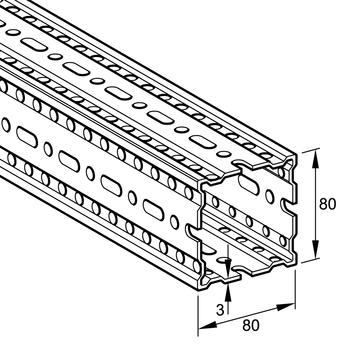

Galvanised box-section for fabrication of steel frames. Designed for both simple two-dimensional supports and complex volumetric arrangements. Holes are designed to receive Self Forming Screw FLS in conjunction with relevant components.
Technical Data

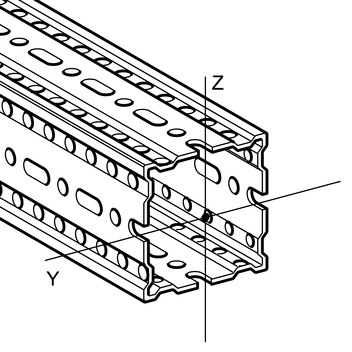

| Type | Section modulus [cm3 ] | Moment of inertia [cm4 ] | Radius of inertia [cm] | Torsional moment lt [cm4 ] | Cross section A [cm2 ] |
|---|---|---|---|---|---|
| TP F 80 | Wy: 12.95 Wz: 12.95 | ly: 62.47 lz: 62.47 | iy: 3.58 iz: 3.58 | 48.40 | 4.94 |
| TP F 80/30 | Wy: 7.93 Wz: 4.15 | ly: 35.40 lz: 6.74 | iy: 3.63 iz: 1.58 | 8.58 | 2.69 |
Mechanical properties shown above take into account perforations.
The specific values marked * are effective values established by tests, geometrical quantities (analytically determined) can be significantly higher.
| Material: | Steel, HCP |
Also available with DUALSHIELD for high corrosion protection within C5H environments.
Approvals / Conformity
CE mark (Declaration of performance see www.sikla.co.uk/service/downloads)
ETA-24/0471
