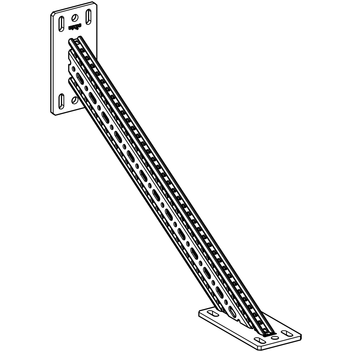

Bracing Arm SKO F 100
Bracing arm for reinforcement of frames made from Beam Section TP F100 and/or Cantilever Bracket AK F100.

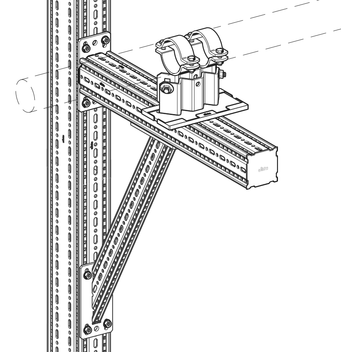

- With 2x4 Self Forming Screw FLS when used inside a corner of two F100 size hollow-box sections.
- With 4x Self Forming Screw FLS and 2x suitable wall anchors/fixings when used to connect between one
F 100 size hollow-box section and the building structure.

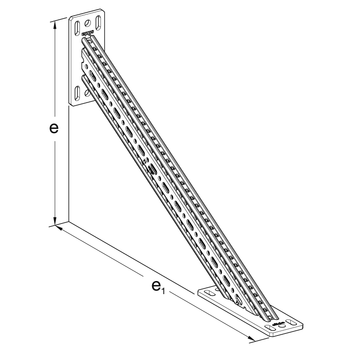

| Type|| Dimensions of|
Base plate [mm]
|SKO F 100||210 x 100 x 8||450||710|
| Material:||Steel, HCP|
Approvals / Compliance
CE mark (Declaration of performance see www.sikla.co.uk/service/downloads)
