Sections and Welded End-Plate Beams

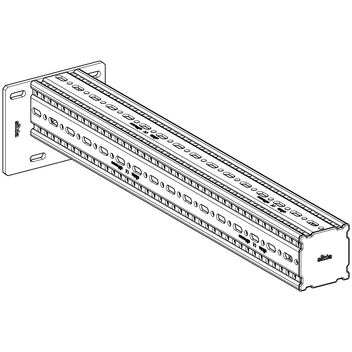

Cantilever Bracket AK F 160-100-E

Application

Galvanised box-section with welded end-plate to serve as cantilever arm
for Beam Section TP F 100/160 (flange side 160) or Beam Bracket TKO F 100/160.

Installation

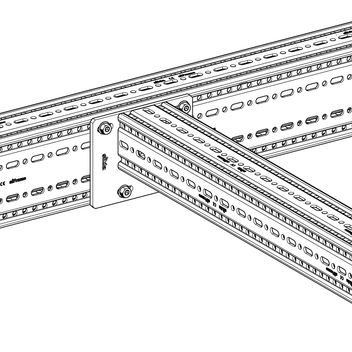

With 4 x Self Forming Screw FLS when fixed to another siFramo 100/160 (flange
side 160) box-section. Fixing to walls and ceilings with suitable
wall anchors M10.

Technical Data

Type

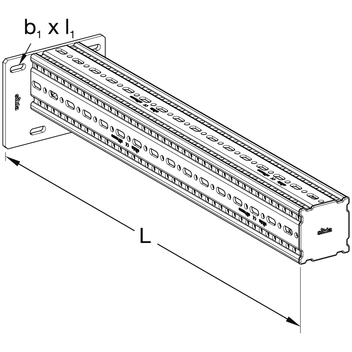

Dimensions of
base plate [mm]
L
[mm]
b1 x l1
[mm]
AK F 160-100-E-800 160 x 200 800 11 x 20
AK F 160-100-E-1200 160 x 200 1200 11 x 20

Configuration:
Plate welded with Beam Section F 100
material:
Steel, HCP

Approvals / Conformity

CE mark (Declaration of performance see www.sikla.co.uk/downloads)

TypeW
[kg]
Quantity
[pack]
Part
number
AK F 160-100-E-800 10.91 117145
AK F 160-100-E-120015.41 117146
