Sections and Welded End-Plate Beams

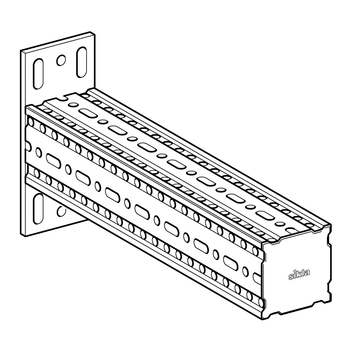

Cantilever Bracket AK F 100

Application

Galvanised hollow-box-section with welded end-plate to serve as cantilever arm. May be used as a crossbar when combined with End Support STA and 4 x Self Forming Screw FLS. The round holes in the base plate allow direct connection to existing pre-cast channels. The cantilever types F 100-80 and F 100-80-E allow the for the combination of a F80/80 Cantilever Arm to be combined with F 100 profile.

Installation

With 4 x Self Forming Screw FLS when fixed to another siFramo hollow-box-section. Alternatively with two suitable wall anchors through holes “A” when fixed directly to building structure.

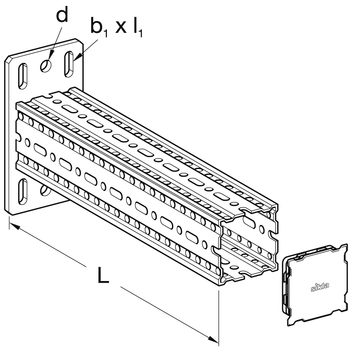

Technical Data

Type
Dimensions of base plate
[mm]
L
[mm]
d
[mm]
b1 x l1
[mm]
AK F 100-400 210 x 100 x 8 400 14 11 x 20
AK F 100-800 210 x 100 x 8 800 14 11 x 20
AK F 100-1200 210 x 100 x 8 1200 14 11 x 20

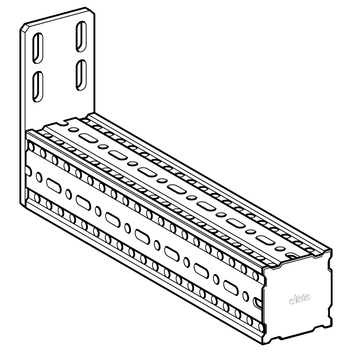

AK F 100-E - 600 185 x 100 x 8 600 - 11 x 20
AK F 100-80 - 400 190 x 100 x 8 400 14 11 x 20
AK F 100-80 - 800 190 x 100 x 8 800 14 11 x 20
AK F 100-80-E - 600 170 x 100 x 8 600 - 11 x 20

Configuration:
Plate welded to Beam Section F 100
material:
Steel, HCP

Cantilever Bracket AK F DoP A420-A820 PDF | 110.7 KB

Approvals / Compliance

CE mark (Declaration of performance see www.sikla.co.uk/downloads)

TypeW
[kg]
Quantity
[pack]
Part
number
AK F 100-4005.71 113068
AK F 100-80010.11 113069
AK F 100-120014.71 113419
AK F 100-E-6007.81 113070
AK F 100-80 - 4003.61 117143
AK F 100-80 - 8006.01 117144
AK F 100-80-E - 6004.71 117254
