Sections and Welded End-Plate Beams

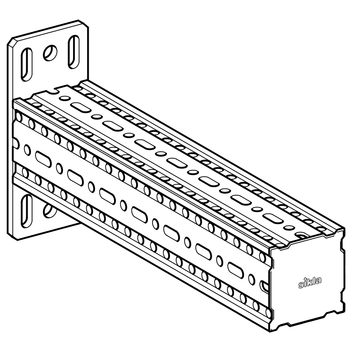

Cantilever Bracket AK F 80

Application

Galvanised hollow-box-section with welded end-plate to serve as cantilever arm. May be used as a crossbar when combined with End Support STA and 4 x Self Forming Screw FLS.

Scope of delivery

With pre-assembled End Cap ADK F 80

Installation

With 4 x Self Forming Screw FLS when fixed to another siFramo box-section.

Technical Data

Type
L
[mm]
Dimensions of base plate
[mm]
slots in base plate for
[mm]

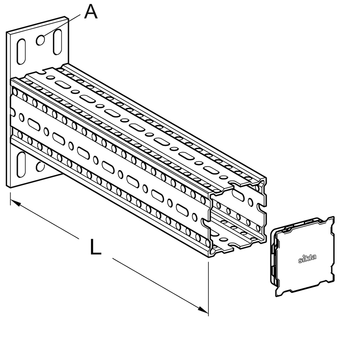

A
[mm]
AK F 80-400 400 190 x 80 x 8 20 x 11 14
AK F 80-800 800 190 x 80 x 8 20 x 11 14
AK F 80-E-600 600 165 x 80 x 8 20 x 11 -

Configuration:
Plate welded to Beam section F 80
Material:
Plate
Steel, HCP
Beam section
Steel, HCP

Approvals / Conformity

CE mark (Declaration of performance see www.sikla.co.uk/downloads)

Declaration of performance Cantilever Bracket AK F PDF | 1.6 MB

TypeW
[kg]
Quantity
[pack]
Part
number
AK F 80-4003.41 192764
AK F 80-8005.81 192771
AK F 80-E-6004.51 110370
