Assembly Groups

Assembly Group BG13 MS41-M10

Application

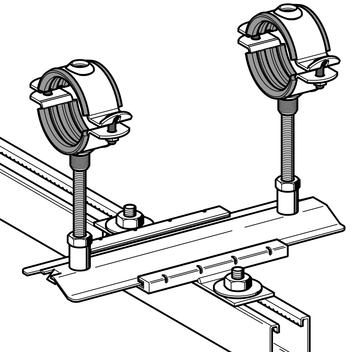

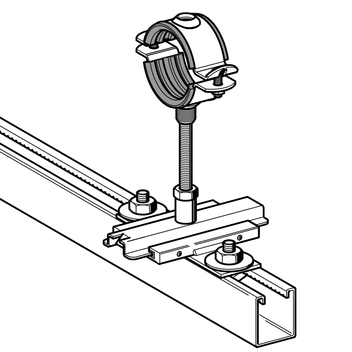

An Assembly Group for use as a guided support with the pipe clamp Stabil D-3G. The Assembly Group is designed for use with the Sikla 41 channel system. The height is adjusted using the Threaded Rod M10. The pipe clamp with sound absorption lining ensures sound absorption in accordance with DIN 4109.

Scope of delivery

Each Assembly Group is pre-assembled, packed and labeled.

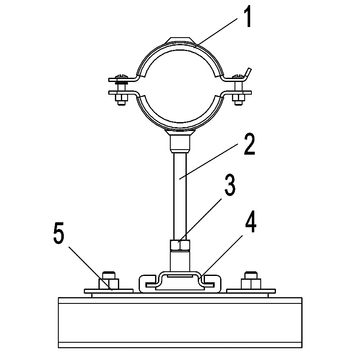

Parts list:
Item 1 Pipe Clamp Stabil D-3G with lining
Assembly Kit MKit MS41 S M10 / L M10 consists of:
Item 2 Threaded Rod GST M10 x 200
Item 3 Hexagon Nut NT M10
Item 4 Slide Set GS 2G-PL / Slide Set GS 2G2-PL
Item 5 T-Head Bolt TBO HZ41 M10 x 20

Installation

The assembly of the individual components to form an Assembly Group is carried out during the course of pipe installation on the construction site.

Technical Data

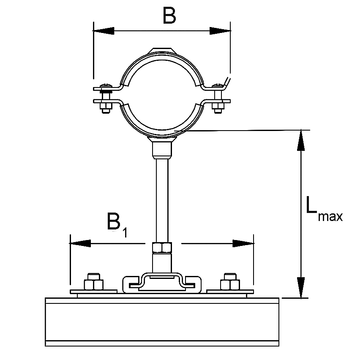

Lmax, vertical = 150 mm
Lmax, horizontal = not recommended

Material:
Pipe clamp and connecting parts:
Steel, HCP
Bolts and nuts:
Steel, HCP
Sound absorption lining:
SBR/EPDM, black, captively bonded in
TypeSize range
[mm]
B1
[mm]
B
[mm]
W
[kg]
Quantity
[pack]
Part
number
DN 1519 - 23140680.901 110180
DN 2024 - 28140750.931 110182
DN 2533 - 37140810.951 110183
DN 3240 - 45140930.971 110184
DN 4047 - 521401040.991 110185
DN 5060 - 651401171.011 110186
DN 6573 - 781401501.621 110187
DN 8088 - 931401641.721 110188
DN 100108 - 1151401871.841 110189
