Assembly Group BG11 MS41-1/2"

Application

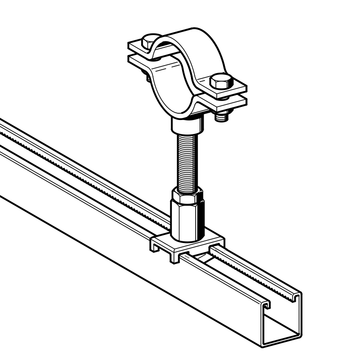

An Assembly Group containing components to make up a permanent pipe connection with the heavy Pipe Clamp Stabil I-1/2". The Assembly Group is designed for use with the Sikla 41 channel system. The height is adjusted via the Threaded Tube 1/2".

Scope of delivery

Each Assembly Group is pre-assembled, packed and labeled.

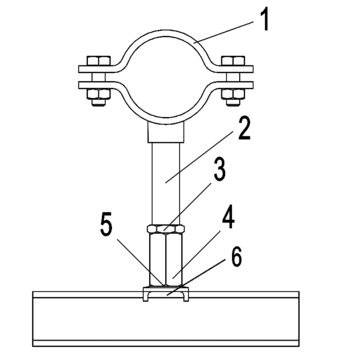

Parts list:
Item 1 Pipe Clamp Stabil I-1/2"
Assembly Kit MKit MS 41 1/2" consists of:
Item 2 Threaded Tube GR 2 m 1/2" x 200
Item 3 Locking Nut NT G 1/2"
Item 4 Adapter AD IG/IG 1/2"/M16
Item 5 Holding Bracket HK 41/16
Item 6 T-Head Bolt TBO HZ41 M16 x 25

Installation

The assembly of the individual components to form an Assembly Group is carried out during the course of pipe installation on the construction site.

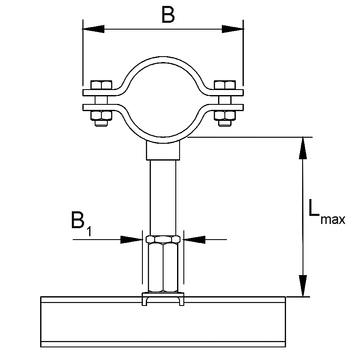

Technical Data

Lmax, vertical = 200 mm
Lmax, horizontal = 150 mm

Material:
Pipe clamp and connecting parts:
Steel, HCP
Bolts and nuts:
Steel, HCP
TypeSize range
[mm]
B1
[mm]
B
[mm]
W
[kg]
Quantity
[pack]
Part
number
DN 1516 - 2235850.921 110153
DN 2023 - 2735920.931 110154
DN 2530 - 34351000.961 110155
DN 3239 - 44351121.041 110156
DN 4044 - 49351171.021 110157
DN 5057 - 61351391.241 110158
DN 6573 - 77351561.321 110159
DN 8085 - 89351681.381 110160
DN 100109 - 116351941.671 110161
