Assembly Groups

Assembly Group BG13 MS41-1/2"

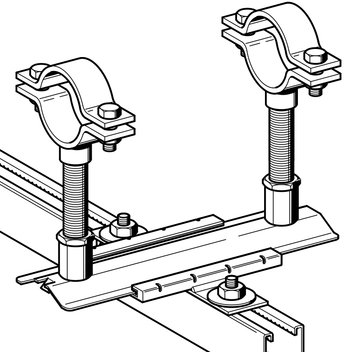

Application

An Assembly Group for use as a guided support with the heavy Pipe Clamp Stabil I-1/2". The Assembly Group is designed for use with the
Sikla 41 channel system. The height is adjusted via the Threaded Tube 1/2".

Scope of delivery

Each Assembly Group is pre-assembled, packed and labeled.

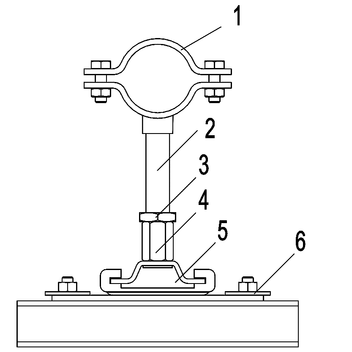

Parts list:
Item 1 Pipe Clamp Stabil I-1/2"
Assembly Kit MKit FR MS 41 S 1/2" consists of:
Item 2 Threaded Tube GR 1/2" x 200
Item 3 Locking Nut NT G 1/2"
Item 4 Adapter AD IG/IG ½“ / ½”s
Item 5 Slide Set GS H3G-PL / Slide Set GS H3G2-PL
Item 6 T-Head Bolt TBO HZ41 M10 x 20

Installation

The assembly of the individual components to form an Assembly Group is carried out during the course of pipe installation on the construction site.

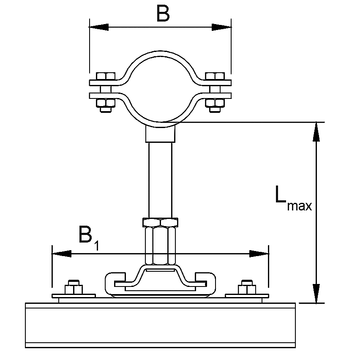

Technical Data

Lmax, vertical = 200 mm
Lmax, horizontal = not recommended

Material:
Pipe clamp and connecting parts:
Steel, HCP
Bolts and nuts:
Steel, HCP
TypeSize range
[mm]
B1
[mm]
B
[mm]
W
[kg]
Quantity
[pack]
Part
number
DN 1516 - 22190852.171 110191
DN 2023 - 27190922.181 110192
DN 2530 - 341901002.211 110193
DN 3239 - 441901122.291 110194
DN 4044 - 491901172.271 110195
DN 5057 - 611901392.491 110196
DN 6573 - 771901563.971 110197
DN 8085 - 891901684.091 110198
DN 100109 - 1161901944.671 110199
