Assembly Groups

Assembly Group BG48 MS41-1/2"

Application

An Assembly Group containing components to make up a permanent pipe connection with the insulated Chilled Water Clamp RB for chiller plants and cool water systems. The Assembly Group is designed for use with the Sikla 41 channel system. The height is adjusted via the Threaded Tube 1/2".

Scope of delivery

Each Assembly Group is pre-assembled, packed and labeled.

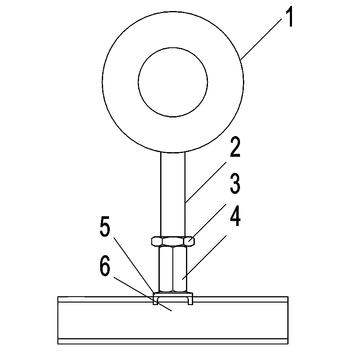

Parts list:
Item 1 Chilled Water Clamp RB
Assembly Kit MKit MS41 1/2" consists of:
Item 2 Threaded Tube 1/2" x 200
Item 3 NT 1/2" locking nut
Item 4 Adapter AD IG/IG 1/2"/M16
Item 5 Holding Bracket HK 41/16
Item 6 T-Head Bolt TBO HZ41 M16 x 25

Installation

The assembly of the individual components to form an Assembly Group is carried out during the course of pipe installation on the construction site.

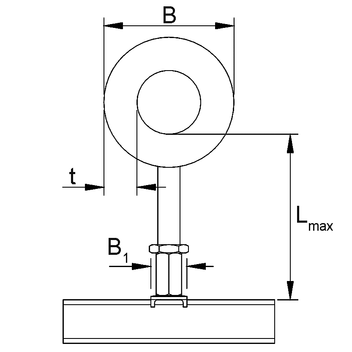

Technical Data

Lmax, vertical = 200 mm
Lmax, horizontal = not recommended

Material:
Connecting parts:
Steel, HCP
Bolts and nuts:
Steel, HCP
Insulating body:
PUR foam (250 kg/m3 , B2), µ = 1200
λ = 0,045 W/mK (0°C)
Area of use:
-50°C to +105°C
TypeNominal widths
[DN]
B1
[mm]
B
[mm]
t
[mm]
W
[kg]
Quantity
[pack]
Part
number
21/30153581301.821 113904
27/30203587301.821 113905
33/30253593301.831 113906
42/303235102301.841 113907
48/304035108301.841 113908
60/305035120301.931 113909
76/306535136301.051 113910
89/308035149301.101 113911
114/4010035195401.681 113912
