MODULAR
STEELWORK SOLUTIONS
Assembly Groups

Assembly Group BG42 MS41-1/2"

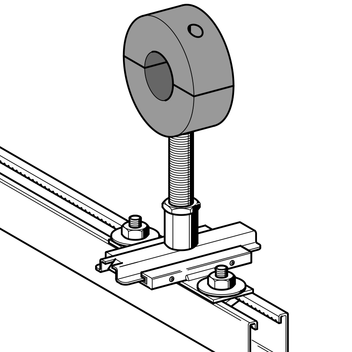

Application

An Assembly Group for use as a guided support with the insulated Chilled Water Clamp RB for chiller plants and cool water systems. The Assembly Group is designed for use with the Sikla 41 channel system. The height is adjusted via the Threaded Tube 1/2".

Scope of delivery

Each Assembly Group is pre-assembled, packed and labeled.

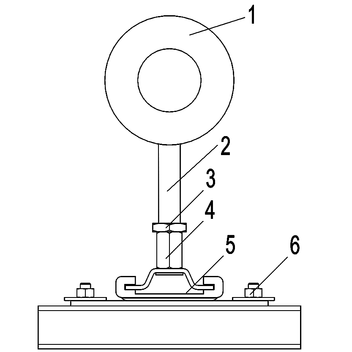

Parts list:
Item 1 Chilled Water Clamp RB
Assembly Kit MKit FR MS41 S 1/2" consists of:
Item 2 Threaded Tube GR 1/2" x 200
Item 3 Locking Nut NT G 1/2"
Item 4 Adapter AD IG/IG 1/2"/1/2"
Item 5 Slide Set H3G-PL
Item 6 T-Head Bolt TBO HZ41 M10 x 20

Installation

The assembly of the individual components to form an Assembly Group is carried out during the course of pipe installation on the construction site.

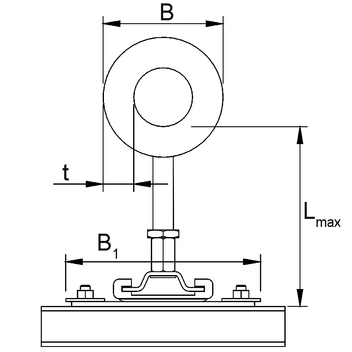

Technical Data

Lmax, vertical = 200 mm
Lmax, horizontal = not recommended

Material:
Connecting parts:
Steel, HCP
Bolts and nuts:
Steel, HCP
Insulating body:
PUR foam (250 kg/m3 , B2), µ = 1200
λ = 0,045 W/mK (0°C)
Area of use:
-50°C to +105°C
TypeNominal widths
[DN]
B1
[mm]
B
[mm]
t
[mm]
W
[kg]
Quantity
[pack]
Part
number
21/301519081302.071 110268
27/302019087302.071 110269
33/302519093302.081 110270
42/3032190102302.091 110271
48/3040190108302.091 110272
60/3050190120302.181 110273
76/3065190136302.301 110274
89/3080190149302.351 110275
114/40100190195402.931 110276
