Assembly Group BG14 F80-M10

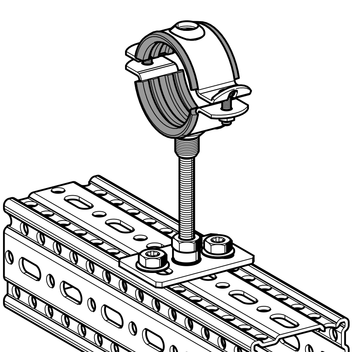

An Assembly Group containing components to make up a permanent pipe connection with the pipe clamp Stabil D-3G. The Assembly Group is designed for use with the Beam Section TP F 80. It is connected using the Self Forming Screw FLS F, and the height is adjusted via the Threaded Rod M10.
The pipe clamp with sound absorption lining ensures sound absorption in accordance with DIN 4109.
Scope of delivery
Each Assembly Group is pre-assembled, packed and labeled.

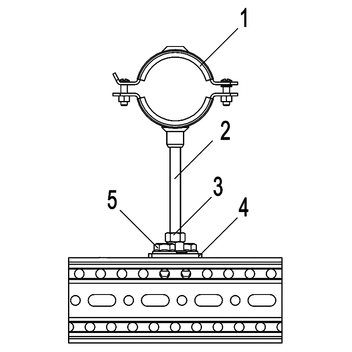

Item 1 Pipe Clamp Stabil D-3G with lining
Assembly Kit MKit F 80 M10 consists of:
Item 2 Threaded Rod GST M10 x 200
Item 3 Hexagon Nut M10
Item 4 Mounting Plate GPL F80-M10
Item 5 Self Forming Screw FLS F
The assembly of the individual components to form an Assembly Group is carried out during the course of pipe installation on the construction site.

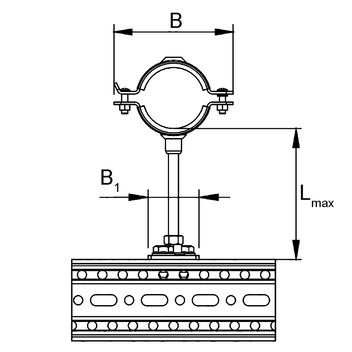

Lmax, vertical = 150 mm
Lmax, horizontal = not recommended
| Pipe clamp and conncetion parts:|| Steel, HCP|
| Screws and nuts:|| Steel, HCP|
| Sound absorption lining:||SBR/EPDM, black, bonded in|
