Assembly Groups

Assembly Group BG16 F100-1/2"

Application

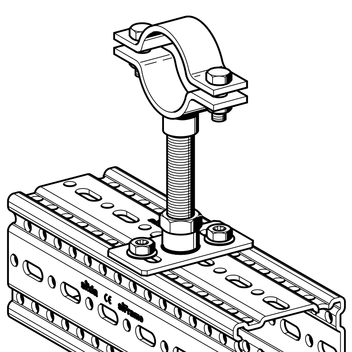

An Assembly Group containing components to make up a permanent pipe connection with the heavy Pipe Clamp Stabil I-1/2". The Assembly Group is designed for use with the Beam Section TP F 100. It is connected using the Self Forming Screw FLS F, and the height is adjusted via the Threaded Tube 1/2".

Scope of delivery

Each Assembly Group is pre-assembled, packed and labeled.

Parts list:

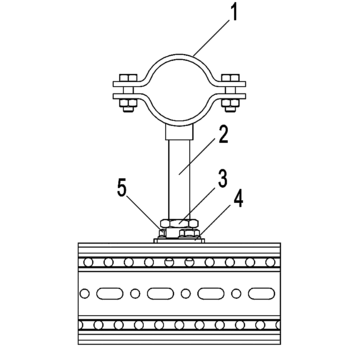

Item 1 Pipe Clamp Stabil I-1/2"
Assembly Kit MKit F 100 1/2" consists of:
Item 2 Threaded Tube GR 1/2" x 200
Item 3 Locking Nut NT G 1/2"
Item 4 Mounting Plate GPL F 100-1/2"
Item 5 Self Forming Screw FLS F

Installation

The assembly of the individual components to form an Assembly Group is carried out during the course of pipe installation on the construction site.

Technical Data

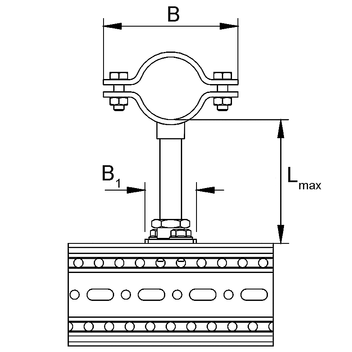

Lmax, vertical = 200 mm
Lmax, horizontal = 150 mm

Material:
Pipe clamp and connecting parts:
Steel, HCP
Bolts and nuts:
Steel, HCP
TypeSize range
[mm]
B1
[mm]
B
[mm]
W
[kg]
Quantity
[pack]
Part
number
DN 1516 - 2250850.851 113842
DN 2023 - 2750920.881 113843
DN 2530 - 34501000.911 113844
DN 3239 - 44501120.951 113845
DN 4044 - 49501170.971 113846
DN 5057 - 61501391.191 113847
DN 6573 - 77501561.271 113848
DN 8085 - 89501681.331 113849
DN 100109 - 116501941.621 113850
