Assembly Groups

Assembly Group BG17 F100-1/2"

Application

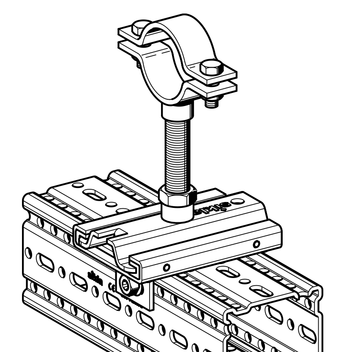

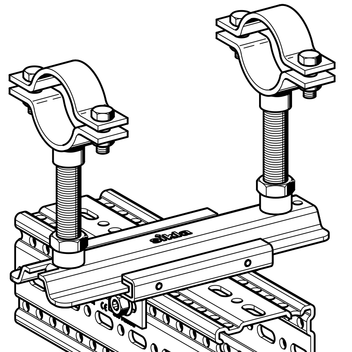

An Assembly Group for use as a guided support with the heavy Pipe Clamp Stabil I-1/2". The Assembly Group is designed for use with the Beam Section
TP F 100. It is connected using the Self Forming Screw FLS F, and the height is adjusted via the Threaded Tube 1/2".

Scope of delivery

Each Assembly Group is pre-assembled, packed and labeled.

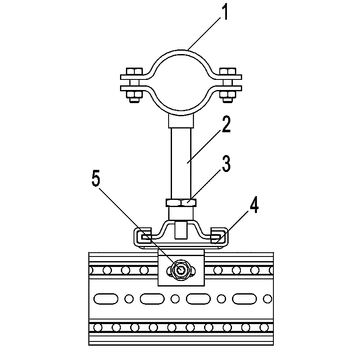

Parts list:
Item 1 Pipe Clamp Stabil I-1/2"
Assembly Kit MKit FR F 100 S 1/2" / L 1/2" consists of:
Item 2 Threaded Tube 1/2" x 200
Item 3 Locking Nut NT G 1/2"
Item 4 Slide Set GS F 100 1G / Slide Set GS F 100 1G2
Item 5 Self Forming Screw FLS F

Installation

The assembly of the individual components to form an Assembly Group is carried out during the course of pipe installation on the construction site.

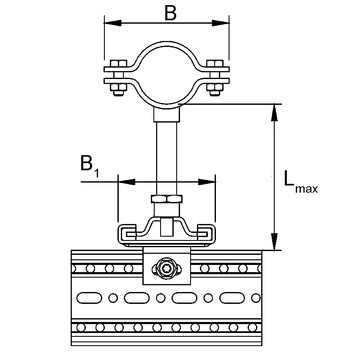

Technical Data

Lmax, vertical = 200 mm
Lmax, horizontal = not recommended

Material:
Pipe clamp and connecting parts:
Steel, HCP
Bolts and nuts:
Steel, HCP
TypeSize range
[mm]
B1
[mm]
B
[mm]
W
[kg]
Quantity
[pack]
Part
number
DN 1516 - 22102852.001 113851
DN 2023 - 27102922.011 113852
DN 2530 - 341021002.041 113853
DN 3239 - 441021122.081 113854
DN 4044 - 491021172.101 113855
DN 5057 - 611021392.321 113856
DN 6573 - 771021563.761 113857
DN 8085 - 891021683.881 113858
DN 100109 - 1161021944.461 113859
